Canon Eos Rebel T2i 550d Instruction Manual

161
k Enjoying Movies
(See the PDF file instruction manu al for ZoomBrowser EX/ImageBrowser)
The movie files recorded in the card can
be transferred to a personal computer
and played or edited with ZoomBrowser
EX/ImageBrowser (provided software).
You can also extract a single frame from
a movie and save it as a still photo.
Playback and Editing with a Personal Computer
 For smooth movie playba ck, use a high-performance personal computer.
Regarding the computer hardware re quirements for ZoomBrowser...

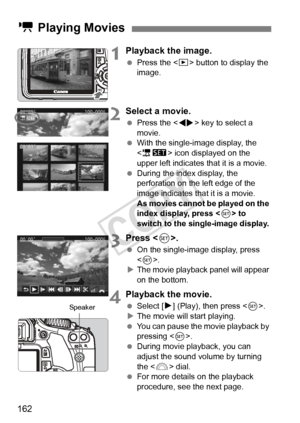

162
1Playback the image.
 Press the < x> button to display the
image.
2Select a movie.
  Press the < U> key to select a
movie.
  With the single-image display, the
 icon displayed on the
upper left indicates that it is a movie.
  During the index display, the
perforation on the left edge of the
image indicates that it is a movie.
As movies cannot be played on the
index display, press < 0> to
switch to the single-image display.
3Press < 0>.
  On the single-image display, press
.
X The movie...

163
k Playing Movies
FunctionPlayback Description
2 ExitReturns to the single-image display.
7 PlayPressing < 0> toggles between play and stop.
8 Slow motionAdjust the slow motion  speed by pressing the < U> key.
The slow-motion speed is in dicated on the upper right.
5 First frameDisplays the movie’s first frame.
3 Previous frameEach time you press < 0>, a single previous frame is
displayed. If you hold down < 0>, it will rewind the movie.
6 Next frameEach time you press < 0>, the movie will play...

164
You can edit out the first and last scenes of a movie in 1-sec. increments.
1On the movie playback screen,
select [X].
X The editing screen will be displayed.
2Specify the part to be edited out.
  Select either [ U] (Cut beginning) or
[V ] (Cut end), then press < 0>.
  Press the < U> key to see the
previous or next frames. Holding it
down will fast forward the frames.

After deciding which pa rt to edit out, press
. The portion highlighted in blue on
the top of the screen  is what will...

165
You can playback the images in the card as an automatic slide show.
1Select [Slide show].
 Under the [ 3] tab, select [Slide
show ], then press < 0>.
2Select the images to be played
back.
  Press the < V> key to select the top
menu item, then press < 0>. Press
the < V> key to select one of the
following: [ jAll images/i Date/
k Movies/z Stills]. Then press
< 0 >.
  If you selected [ iDate ], press the
< B > button while < zH> is
highlighted.
  The [ Select date ] screen will appear.
Press...

3 Slide Show (Auto Playback)
166
 3Set the play time and repeat option.
 Press the < V> key to select [ Set
up], then press < 0>.
  For still photos, set the [ Display time]
and [Repeat ] options, then press the
< M > button.
4Start the slide show.
 Press the < V> key to select [ Start],
then press < 0>.
X After [ Loading image... ] is displayed,
the slide show will start.
5Quit the slide show.
  To quit the slide show and return to
the setting screen, press the
 button.
[Display time][Repeat]
 To...

167
You can also view the still photos and movies on a TV set. Before
connecting or disconnecting the cable between the camera and
television, turn off the camera and television.
* Adjust the movie’s sound  volume with the TV set.* Depending on the TV set, part of the image di splayed might be cut off.
The HDMI Cable HTC-100 (sold separately) is required.
1Connect the HDMI cable to the camera.
 Connect the HDMI cable to the
camera’s < D > terminal.
  With the plug’s < dHDMI MINI > logo
facing the...

Viewing the Images on TV
168 For HDMI CEC TV sets
When a TV set compatible with HDMI CEC* is connected to the camera with the
HDMI cable, you can use the TV set’s  remote control for playback operations.
* A function enabling you to control multiple HDMI devices with one remote control unit.
1 Select [Ctrl over HDMI].
 Under the [4] tab, select [Ctrl over HDMI], then
press <
0>. Select [Enable], then press .XWhen the camera is connected to a TV
set, the TV set’s input  will automatically
switch to...

169
Viewing the Images on TV
1Connect the provided AV cable to
the camera.
 Connect the AV cable to the camera’s
<
/q C> terminal.
  With the plug’s < Canon> logo facing
the back of the camera, insert it into
the <
/q C> terminal.
2Connect the AV cable to the TV set.
 Connect the AV cable to the TV’s video
IN terminal and to the audio IN terminal.
3Turn on the TV and switch the TV’s
video input to select the connected port.
4Set the camera’s power switch to .
5Press the < x> button.
XThe image will...

170
Protecting an image prevents it from being erased accidentally.
1Select [Protect images].
 Under the [ 3] tab, select [Protect
images ], then press < 0>.
X The protect setting screen will
appear.
2Select the image and protect it.
  Press the < U> key to select the
image to be protected, then press
< 0 >.
X When an image is protected, the
 icon will appear on the top of
the screen.
  To cancel the image protection, press
 again. The < K> icon will
disappear.

To protect another im age, repeat...
