BenQ Fp71g User Manual

21 How to adjust your monitor
How to adjust your monitor
A Look at the Control Panel
There are 6 keys for user’s control including “i key”, “Exit”, “Enter”, “” key and a power
with. The following descriptions are the introduction of these keys & switch.
1. “
i key” : Adjust vertical position, phase, horizontal position and pixel clock automatically.
2. “Exit” key: Back to previous menu or exit OSD.
3.
W (Left) key: For Left/Decrease adjustment. Left key is the hot key for Contrast.
4.
X (Right)...

  22   How to adjust your monitor
Main Menu Mode
Control Functions Available in Main Menu

Luminance sub menu
Main Menu
Press the W or X keys to adjust the degree of
Brightness.
Press the Exit key to return to previous menu.
Press the
W or X keys to adjust the degree of
Contrast.
Press the Exit to return to previous menu.


23 How to adjust your monitor

Geometry sub menu
Press the
W or X keys to adjust the display
Horizontal Position.
Press the Exit key to return to previous menu.
Press the
W or X keys to adjust the display
Vertical Position.
Press the Exit key to return to previous menu.
.
Press the
W or X key to adjust the monitor
Pixel Clock.
Press the Exit key to return to previous menu.
Press the
W or X keys to adjust the degree of
screen display Phase.
Press the Exit key to return to previous menu.


  24   How to adjust your monitor

Color sub menu
Reddish - applies a warm tint to the image and is factory pre-set to the news print standard white
color.
Bluish    - applies a cool tint to the image and is factory pre-set to the PC industry standard white
color.
Normal  - allows video and still photographs to be viewed with natural coloring. This is the factory
default color.
User Preset
User Preset is provided so you can tailor the
image color tint to suit your liking. The blend of
the Red,...

25 How to adjust your monitor

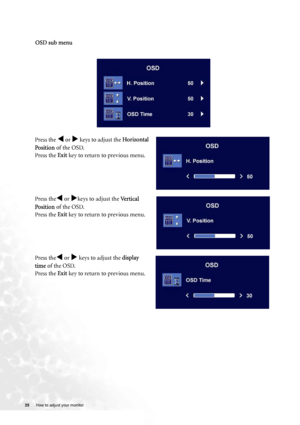

OSD sub menu
Press the W or X keys to adjust the Horizontal
Position of the OSD.
Press the Exit key to return to previous menu.
Press the
W or Xkeys to adjust the Vertical
Position of the OSD.
Press the Exit key to return to previous menu.
Press the
W or X keys to adjust the display
time of the OSD.
Press the Exit key to return to previous menu.


  26   How to adjust your monitor

Languages Sub menu
Press the
W or X keys to select a language to have the OSD display menus in that language.
Press the Exit key to return to previous menu.


27 How to adjust your monitor


Recall sub menu
Press the W or X keys to select Color Recall.
Press the Enter key to recall color settings, or
press the Exit key to return to previous menu.
Press the
W or X keys to select Recall All.
Press the Enter key to recall position and color
settings, or press the Exit key to return to
previous menu.


  28   How to adjust your monitor

Miscellaneous sub menu
Sharpness:
Press the
W or X keys to adjust the degree of
Sharpness.
Press the Exit key to return to previous menu.

Display Information:
Select Display Information to display the
current monitor property settings.
Press the Exit key to return to previous menu.



29 Troubleshooting
Troubleshooting
Frequently Asked Questions (FAQ)
The image is blurred:
Read the How to adjust the screen resolution section, and then select the correct resolution,
refresh rate and make adjustments based on these instructions.
How do you use a VGA extension cable?
Remove the extension cable for the test. Is the image now in focus? If not, optimize the image by
working through the instructions in the
How to adjust the screen refresh rate section It is normal
for blurring to occur...

  30   Troubleshooting
The image is distorted, flashes or flickers:
Read the How to adjust the screen resolution section and then select the correct resolution,
refresh rate and make adjustments based on these instructions.
The image is displaced in one direction:
Read the How to adjust the screen resolution section and then select the correct resolution,
refresh rate and make adjustments based on these instructions.
Need More Help?
If your problems remain after checking this manual, please contact...
