AEG S 40360 Kg Instruction Book

37 14. Fit the pin of the double door hinge (m) into
the left drill of the freezer door. (fig. 2)
15. Fit the freezer door to the lower door hinge
pin (f). (fig. 3)
16. Fit the refrigerator door to the upper door
hinge pin (d) then slightly tilting both doors
fit the pin of the double door hinge (m) into
the left drill of the refrigerator door.
17. Opening both doors fix the double door
hinge onto the left side using the screws (2
pieces) (c). Do not forget to replace the plas-
tic spacer (b) under the...

38
Instructions for the User
Description of the appliance, main parts
A - Refrigerator
B - Freezer
1. Top with indicating switch
2. Lighting box
3. Glass shelves
4. Cooling surface
5. Defrost water drain
6. Glass shelf
7. Vegetable boxes
8. Data label
9. Freezing compartment
10. Storing compartment(s)
11. Defrost water outlet
12. Bottom plinth
13. Adjustable feet
14. Butter compartment lid15. Egg tray
16. Door shelf
17. Door gasket
18. Bottle shelf
19. Handles
20. Ice tray
21. Condenser
22. Defrost water...

39

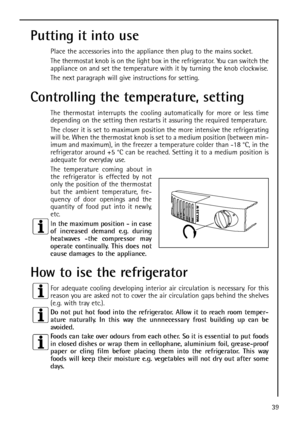

Putting it into use
Place the accessories into the appliance then plug to the mains socket.
The thermostat knob is on the light box in the refrigerator. You can switch the
appliance on and set the temperature with it by turning the knob clockwise.
The next paragraph will give instructions for setting.
Controlling the temperature, setting
The thermostat interrupts the cooling automatically for more or less time
depending on the setting then restarts it assuring the required temperature.
The closer it...

40
Interior Accessories
Storage Shelves
Various glass storage shelves are
included with your appliance. The
height of the storage shelves can be
adjusted:
1. To do this pull the storage shelf for-
ward until it can be swivelled
upwards or downwards and
removed.
2. Please do the same in reverse to
insert the shelf at a different
height.
Storing in the refrigerator
When placing the different kinds of food take into consideration the sketch
below in figure:
1 Confectionery, ready-cooked
foods, foods in...

41
How to use the freezer
Freezing
The appliance can be used to freeze fresh food of quantity specified on the
data label. Freezing different products should always be done after proper
preparing as follows.
Set the thermostat knob to a medium position.
Put the previously frozen food - or some of it - to the basket or baskets. Put
the fresh food into the freezing compartment, leaving enough space for air-
flow. If there is some previously frozen food left in the freezing compartment,
put this food into...

42
Storing in the freezer
It is practical to replace frozen products into the basket(s) after freezing has
finished. Doing this you could make room in the freezing compartment for
another freezing. Intermediate freezing does not deteriorate foods already
stored.
In large quantities of food are to be stored, remove the baskets except the
lowermost one from appliance and place food on the cooling surface.
Do not forget to keep to the storage time given on the packaging of frozen
products if you buy them...

43
Some useful information and advice
1. The variable shelves are worth paying attention to, which increases the usabil-
ity of the fresh food compartment considerably. Rearranging the shelves is
also possible when the door is open at an angle of 90 .
2. After opening and closing the door of freezer vacuum will rise inside the
appliance because of the low temperature. So wait 2-3 minutes after closing
the door - if you want to open it again - while inner pressure equalises.
3. Take care of opening the...

44
Hints and ideas
In this chapter practical hints and ideas are given about how to use the appli-
ance to reach maximum energy saving and there is environmental informa-
tion about the appliance as well.
How to save energy
1. Avoid putting the appliance in a sunny place near anything that gives off
heat.
2. Be sure that the condenser and the compressor are well ventillated. Do not
cover the sections where ventilation is.
3. Wrap products in tightly closing dishes or cling film to avoid bulding up...

45
Maintenance
Defrosting
Bleeding part of the moisture of cooling chambers in form of frost and goes
with the operation of the appliance.
Thick frost and ice has an insulating effect, so it reduces cooling efficiency as
the temperature increases in the cooling chambers, they need more energy.
At this type of appliance defrosting the cooling surface of the refrigerator is
automatic without any external intervention. The thermostatic control inter-
rupts the operation of compressor at regular intervals...

46When small frost and ice occurs scrape off and remove frost and ice coating
with the supplied plastic scraper.
When ice coating is so thick that it cannot be removed with the plastic
scraper, the cooling gill have to be defrosted. Frequency of defrosting depends
on usage (generally 2-3 times a year).
Take the frozen foods out of the appliance, and put them into a basket lined
with paper or cloth. Store them in a possibly cool place or replace them into
another refrigerator.
Pull out the mains plug from...
