Vizio Television E320i-B0 Specifications

1
5
To install the base:
1 . Align the base with the neck and press it into place.
2 .  Insert and tighten the included M4 8mm Phillips screw using
a Phillips screwdriver as shown.
3 .  When you are finished, place the TV on a stable,
level surface.
Installing the TV on a Wall
To mount your TV on a wall, you will need a wall mount. Consult
the information below to find the appropriate mount for your TV
model:
Installing a TV on a wall requires lifting. To prevent
injury or damage to the TV, ask...

2
6

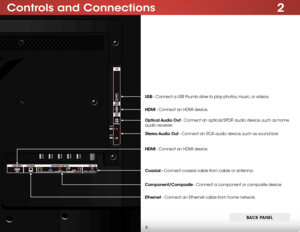

Controls and Connections
Ethernet - Connect an Ethernet cable from home network. Coaxial - Connect coaxial cable from cable or antenna. Optical Audio Out - Connect an optical/SPDIF audio device, such as home
audio receiver.Stereo Audio Out - Connect an RCA audio device, such as sound bar.
HDMI - Connect an HDMI device.
Component/Composite - Connect a component or composite device. USB - Connect a USB thumb drive to play photos, music, or videos.
HDMI - Connect an HDMI device.
BACK PANEL

2
7
SIDE PANEL
Power/Input - Press once to turn on the TV.
Press once to access the Input menu. Press and hold to turn off the TV.

2
8
FRONT PANEL
REMOTE SENSOR & POWER INDICATOR
When using the remote, aim it directly at this sensor.
The power indicator flashes on when the TV turns on, then goes out after several seconds.
To keep the power indicator on as long as the TV is on, see
“Turning the Power Indicator On or
Off” on page 47.
FRONT PANEL

2
9
REMOTE CONTROL
REMOTE CONTROL
VOLUME UP/DOWN
Increase or decrease loudness of the audio.
V BUTTON
Open the VIZIO Internet Apps Plus® dock.
INPUT
Change the currently-displayed input.
ARROW
Navigate the on-screen menu.
EXIT
Close the on-screen menu.
CLOSED CAPTIONS
Turn closed captions on or off.
A/V CONTROLS
Control USB media player.
NUMBER PAD
Manually enter a channel.
BAC K
Go to the previous on-screen menu.
POWER
Turn TV on or off.
MENU
Display the on-screen menu.
INFO
Display the...

2
10
Replacing the Batteries
1 . Remove the battery cover.
2 .  Insert two batteries into the remote control. Make sure that
the (+) and (-) symbols on the batteries match the (+) and
(-) symbols inside the battery compartment.
3 .  Replace the battery cover.

3
11
Connecting Your  Devices
CONNECTING A DEVICE
Game Console
Cable/Satellite BoxDVD/Blu-ray Player
Your TV can be used to display output from most devices.
1 .
Verify that your device has a video port that matches an
available port on the TV (HDMI, Component, etc.).
2 .  Turn the TV and your device off.
3 .  Connect the appropriate cable (not included) to the TV and
the device.
4 .  Turn the TV and your device on. Set the TV’s input to match
the connection you used (HDMI-1, HDMI-2, etc.).
*...

3
12
COAXIAL CABLE
Coaxial cables are the traditional way of connecting
antennas and cable television signals to your TV.
Coaxial cables carry both audio and video signals
through a single connector.
AV CABLE
AV cables (or Composite cables) are the traditional
way of connecting your devices to your TV. Video
signals are sent over the yellow connector while audio
is sent over the red and white connectors.
GOODBETTER
COMPONENT VIDEO
YLR
• HD Video Resolutions up to 1080i
•  Analog Connection
•  Audio...

3
13

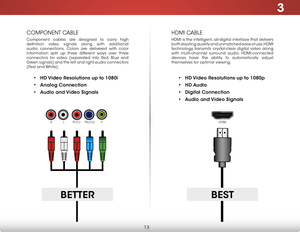

HDMI CABLE
HDMI is the intelligent, all-digital interface that delivers
both dazzling quality and unmatched ease of use. HDMI
technology transmits crystal-clear digital video along
with multi-channel surround audio. HDMI-connected
devices have the ability to automatically adjust
themselves for optimal viewing.
COMPONENT CABLE
Component cables are designed to carry high
definition video signals along with additional
audio connections. Colors are delivered with color
information split up three...

3
14
CONNECTING AN AUDIO DEVICE
Home Audio Receiver
VIZIO Sound Bar
Your TV can output sound to an audio device, such as a receiver
or sound bar.
1 .
Verify that your device has an audio port that matches an
available port on the TV (HDMI or RCA).
2 .  Turn the TV and your audio device off.
3 .  Connect the appropriate cable (not included) to the TV and
the device.
4 .  Turn the TV and your device on.
BEST
HDMI CABLE• CEC 2-WAY COMMUNICATION • 2.0-5.1 DIGITAL AUDIO • PCM, DTS, DOLBY DIGITAL
GOOD
RCA...
