Vizio Television E320-B2 Specifications

3
15
HDMI CABLE
HDMI technology transmits crystal-clear digital
multi-channel surround audio through a single HDMI
cable. Audio Return Channel-enabled (ARC) TVs allow
audio to be sent over an already connected HDMI
cable, eliminating the need for a separate audio cable.
See
Connecting an Audio Device - ARC on page 16.
•  ARC 2-way Communication
(Auto setup)
•  PCM, DTS, Dolby Digital
•  2.0-5.1 Scaleable Lossless
Digital Audio Connection
•  Audio and Video Signals
BEST
HDMIHDMI
OPTICAL/SPDIF...

3
16
Without HDMI ARCWith HDMI ARC
CONNECTING AN AUDIO DEVICE - ARC
HDMI
HDMI
Your Home Audio Receiver
Your Blu-Ray Player Your TV
HDMI
HDMI
Your Home Audio Receiver
Your Blu-Ray Player Your TV
With an HDMI ARC setup, the
audio connection between
your TV and Home Audio
Receiver can be removed.
The HDMI cable will transmit
audio signal to and from
your TV with an all-digital
audio/video connection.
Without an HDMI ARC setup,
your TV will transmit audio
signal from the built-in
tuner to your home...

4
17
Completing the First-Time Setup
The first time you turn on the TV, the Setup App will guide you
through each of the steps necessary to get your TV ready for use.
Before you begin the first-time setup:• Your TV should be installed and the power cord should
be connected to an electrical outlet.
•  Your devices should be connected.
To complete the first-time setup:
1 .  Press the Power/Standby
button on the remote. The TV
powers on and the Setup App
starts.




2 .  Use the Arrow buttons on...

5
18
Using the On-Screen Menu
Your TV features an easy-to-use on-screen menu.
To open the on-screen menu, press the MENU button on the
remote.
From this menu, you can:• Adjust the Picture settings
•  Adjust the Audio settings
•  Activate the Sleep Timer
•  Adjust the Tuner settings
•  Set up Closed Captioning
•  Name the TV Inputs
•  Adjust TV  Settings
•  Access the Guided Setup
Hel p
VIZIO
Netw ork
Sleep
Timer
Input CC
ABC
A udio
W ide
Normal
Pict ure
S e ttings
PanoramicW ideZoom
2D3DExit
TV...

5
19
CHANGING THE INPUT SOURCE
External devices such as DVD players, Blu-ray Players, and video
game consoles can be connected to your TV.  To use one of
these devices with your TV, you must first change the input
source in the on-screen menu.
To change the input device:
1 . Press the INPUT button on
the remote. The input menu is
displayed.
2 .  Use the Up/Down  Arrow
buttons or the INPUT button
on the remote to highlight the
input you wish to view and
press  OK. The selected input is...

5
20
ADJUSTING THE PICTURE SETTINGS
Your TV display can be adjusted to suit your preferences and
viewing conditions.
To adjust the picture settings:
1 . Press the MENU button on the
remote. The on-screen menu is
displayed.
2 .  Use the Arrow buttons on the
remote to highlight Picture and
press  OK. The  PICTURE menu is
displayed.
3 .  Use the Arrow buttons on the
remote to highlight Picture
Mode, then use the Left/Right
Arrow buttons to change the
picture mode:
• Standard mode sets the...

5
21

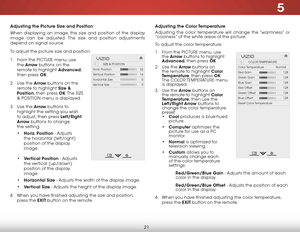

Adjusting the Picture Size and Position
When displaying an image, the size and position of the display
image can be adjusted. The size and position adjustments
depend on signal source.
To adjust the picture size and position:
1 . From the PICTURE menu, use
the  Arrow buttons on the
remote to highlight Advanced,
then press OK.
2 .  Use the Arrow buttons on the
remote to highlight Size &
Position, then press OK. The  SIZE
& POSITION menu is displayed.
3 .  Use the Arrow buttons to
highlight...

5
22
Resetting the Color Temperature Settings
To reset the Color Temperature settings:
1 . From the PICTURE menu, use the Arrow buttons to highlight
Advanced, and then press OK.
2 .  Use the Arrow buttons to highlight Color Temperature, and
then press OK. The COLOR TEMPERATURE menu is displayed.
3 .  Use the Arrow buttons to highlight Reset  Color Temperature,
then press OK. The TV displays, “Select Reset to restore factory
default color temperature settings.”
4 .  Highlight  Reset and press OK.
5 ....

5
23
Resetting the Picture Settings
To reset the picture settings to the factory default settings:
1 . From the PICTURE menu, use the Arrow buttons to highlight
Advanced, then press OK.
2 .  Use the Arrow buttons on the remote to highlight Reset
Picture Mode, then press OK. The TV displays, “Select Reset to
restore factory default picture settings.”.
3 .  Highlight  Reset and press OK.
4 .  Press the EXIT button on the remote.

5
24
ADJUSTING THE AUDIO  SETTINGS
To adjust the audio settings:
1 . Press the MENU button on the
remote. The on-screen menu is
displayed.
2 .  Use the Arrow buttons on the
remote to highlight Audio and
press  OK. The  AUDIO menu is
displayed.
3 .  Use the Arrow buttons to
highlight the setting you wish
to adjust, then press Left/Right
Arrow buttons to change
the setting:
•  TV Speakers - Turns the
built-in speakers on or off.




•  Surround Sound - DTS Studio Sound
™ is a feature-rich...
