Sony Kdl 46x4500 Operating Instructions

21 GB
Using Optional Equipment
Using Optional Equipment
Connecting Optional Equipment
You can connect a wide range of optional equipment to your TV.
Connect toInput symbol on
screenDescription
1 /AV1 AV1 When you connect a decoder, the TV tuner outputs scrambled
signals to the decoder, and the decoder unscrambles the
signals before outputting them.
2  /AV2
(SMARTLINK) AV 2
SmartLink provides a direct link between the TV and a
recorder (e.g. DVD recorder).
3  /
COMPONENT IN1
or 2 Component 1
or...

22 GB
7 HDM I  IN 1 ,  2,  o r
3 HDMI 1,
HDMI 2, or
HDMI 3Digital video and audio signals are input from the connected
equipment.
In addition, when you connect the equipment that is
compatible with control for HDMI, communication with the
connected equipment is supported. Refer to page 43 to set up
this communication.
If the equipment has a DVI socket, connect the DVI socket to
the HDMI IN 1 socket through a DVI - HDMI adaptor
interface (not supplied), and connect the equipment’s audio
out...

23 GB
Using Optional Equipment
Viewing Pictures from
Connected Equipment
Turn on the connected equipment, and perform
one of the following operations.
For equipment connected to the scart
sockets using a fully-wired 21-pin scart lead
Start playback on the connected equipment.
The picture from the connected equipment
appears on the screen.
For an auto-tuned VCR
In analogue mode, press PROG +/– or the
number buttons, to select the video channel.
For a USB device
See page 24.
For a network device, see...

24 GB
To view two pictures simultaneously
– PIP (Picture in Picture)
You can view two pictures (PC input and TV
programme) on the screen simultaneously.
~
 This function is not available for a DIGITAL MEDIA PORT input.
1Press  OPTIONS .
2Press F/f  to select “PIP”, then press  .
The picture from the connected PC is
displayed in full size, and the TV
programme is displayed in the small
screen.
You can use  F/f  to change the position of
the TV programme screen.
3Press the number buttons or  PROG...

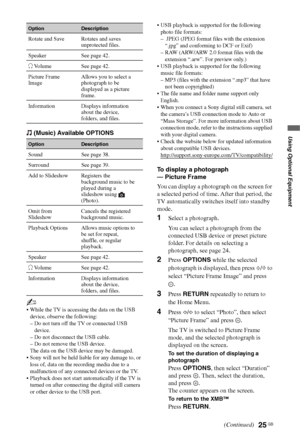

25 GB
Using Optional Equipment (Music) Available OPTIONS
~
 While the TV is accessing the data on the USB device, observe the following:
– Do not turn off the TV or connected USB  device.
– Do not disconnect the USB cable.
– Do not remove the USB device.
The data on the USB device may be damaged.
 Sony will not be held liable for any damage to, or  loss of, data on the recording media due to a
malfunction of any connected devices or the TV.
 Playback does not start automatically if the TV is  turned on...

26 GB
~
 If the photograph is selected from a USB device, it must remain connected to the TV.
 If “Sleep Timer” is activated, the TV
automatically will switch into standby mode.
To display a photograph with the
location on the map
When using a digital still camera with GPS
function, it is possible to display a photograph
with a map of the location where the
photograph was taken using a function of GPS
for recording longitude and latitude. Because
map information is downloaded from the
Internet...

27 GB
Using Optional Equipment
Using BRAVIA Sync with
Control for HDMI
The control for HDMI function enables the TV
to communicate with the connected equipment
that is compatible with the function, using
HDMI CEC (Consumer Electronics Control).
For example, by connecting Sony equipment
that is compatible with control for HDMI
(with HDMI cables), you can control them
together.
Be sure to connect the equipment correctly,
and make the necessary settings.
Control for HDMI
 Automatically turns the...

28 GB
Operating Optional
Equipment Using the TV
Remote
For details, refer to the operating instructions
supplied with the connected equipment.
z
N button has a tactile dot. Use the tactile dot
as a reference when operating other equipment.
This remote is preset to operate Sony TVs, and
most Sony Blu-ray disc players, DVD players,
DVD/HDD recorders, and audio systems
(Home Theatre, etc.).
To control Blu-ray disc players, DVD players,
and DVD/HDD recorders of other
manufacturers (and some other...

29 GB
Using Optional Equipment
1Press and hold the BD, DVD , or AMP
function button you want to programme
on the remote, then press  .
The selected function button ( BD, DV D ,
or  AMP ) flashes.
2Press the number buttons to enter the
three-digit manufacturer’s code number
when the function button flashes.
If you do not enter the code within
10 seconds, you need to go back to step 1.
3Press .
The selected function button flashes
twice.
If the selected function button flashes five
times, repeat...

30 GB
DAV Home Theatre System
AV receivers
Digital terrestrial receivers
LG 332, 338
LOEWE 358, 355, 360, 361, 320, 351
MATSUI 356, 357
ORION 328
PANASONIC 321, 323
PHILIPS 311 – 313, 316 – 318, 358, 359, 363, 364
SAMSUNG 339 – 341, 345
SANYO 335, 336
SHARP 324
THOMSON 319, 350, 365
TOSHIBA 337
ManufacturerCode
SONY (DAV) 401 – 404
ManufacturerCode
SONY 451 – 454
ManufacturerCode
SONY 501 – 504
ManufacturerCode
