Playing Discs
51GB

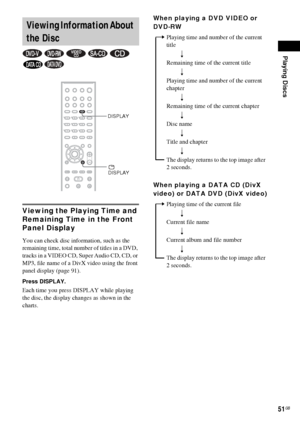

Viewing the Playing Time and
Remaining Time in the Front
Panel Display
You can check disc information, such as the
remaining time, total number of titles in a DVD,
tracks in a VIDEO CD, Super Audio CD, CD, or
MP3, file name of a DivX video using the front
panel display (page 91).
Press DISPLAY.
Each time you press DISPLAY while playing
the disc, the display changes as shown in the
charts.
When playing a DVD VIDEO or
DVD-RW
When playing a DATA CD (DivX
video) or DATA DVD (DivX...

52GB
When playing a VIDEO CD
(without PBC functions), Super
Audio CD, or CD
When playing an MP3
 When playing VIDEO CDs with PBC functions, the
playing time is displayed.
 When playing VIDEO CDs without PBC functions,
the track number and the index number are displayed
after the Disc name.
 You can also check the time information and text
using the Control Menu.
 If the disc does not contain text, the Disc name or the
Track (file) name is displayed “NO TEXT.”
 The system can only display the...

Playing Discs
53GB
 C **:**:**
Playing time of the current chapter
 C–**:**:**
Remaining time of the current chapter
xWhen playing a VIDEO CD (with PBC
functions)
**:**
Playing time of the current scene
xWhen playing a VIDEO CD (without
PBC functions), Super Audio CD, or CD
 T **:**
Playing time of the current track
 T–**:**
Remaining time of the current track
 D **:**
Playing time of the current disc
 D–**:**
Remaining time of the current disc
xWhen playing a DATA CD (MP3
audio)
 T **:**...

54GB
* “Exchangeable Image File Format” is a digital
camera image format defined by the Japan
Electronics and Information Technology Industries
Association (JEITA).
 Date information is [DD/MM/YYYY].
DD: Day
MM: Month
YYYY: Year
 If there is no date information or data is damaged on
the disc, the system cannot display the date
information.
Tip
Note
1 (
8 )
1 (
2 0 )
01/ 01/ 2003DATA CD JPEG
Date information


Sound Adjustments
55GB
When playing a DVD VIDEO or DATA CD/
DATA DVD (DivX video files) recorded in
multiple audio formats (PCM, Dolby Digital,
MPEG audio, or DTS), you can change the
audio format. If the DVD VIDEO is recorded
with multilingual tracks, you can also change the
language.
With VIDEO CDs, CDs, or DATA CDs, you
can select the sound from the right or left
channel and listen to the sound of the selected
channel through both the right and left speakers.
For example, when playing a disc...

56GB
 [2:2/R]: the sound of the right channel of
the audio track 2 (monaural)
 While playing a Super VCD on which the audio track
2 is not recorded, no sound will come out when you
select [2:STEREO], [2:1/L], or [2:2/R].
 You cannot change the sound for Super Audio CDs.
Checking the audio signal
format
(DVD, DivX video only)
If you press AUDIO repeatedly during
playback, the format of the current audio signal
(PCM, Dolby Digital, DTS, etc.) appears as
shown below.
xWhen playing a DVD VIDEO...

Sound Adjustments
57GB
You can take advantage of surround sound
simply by selecting one of system’s pre-
programmed sound fields. They bring the
exciting and powerful sound of movie theaters
into your home.
Press SOUND FIELD.
Each time you press SOUND FIELD repeatedly
until the sound field you want appears in the
front panel display.
You can also select the sound field by pressing
C/c.
All sound field
Automatic outputting of the
original sound
xAUTO FORMAT DIRECT AUTO
The auto decoding function...

58GB
properties of the original recording without
adding any new sounds or tonal colorations.
 When the input signal is multi channel source, Dolby
Pro Logic and Dolby Pro Logic II MOVIE/MUSIC
are canceled and the multi channel source is output
directly.
 When the bilingual broadcast sound is input, Dolby
Pro Logic and Dolby Pro Logic II MOVIE/MUSIC
are not effective.
Enjoying virtual surround
speakers
xVIRTUAL MULTI DIMENSION
Creates an array of virtual surround speaker
positions higher than...

Sound Adjustments
59GB
To turn the surround effect off
Press SOUND FIELD repeatedly until “A.F.D.
AUTO” or “2CH STEREO” appears in the front
panel display.
You can enjoy TV or VCR sound from all
speakers of this system.
For details, see “Step 3: TV Hookup” (page 21)
and “Step 4: Other Component Hookup”
(page 25).
1Press FUNCTION repeatedly until “TV”
or “SAT” (depending on connection)
appears in the front panel display.
2Press SOUND FIELD repeatedly until
the sound field you want appears in the...

60GB
Reinforcing bass frequencies
You can reinforce bass frequencies.
Press DSGX.
Bass frequencies are effectively reinforced.
To turn off the sound effect
Press DSGX again.
 When you connect headphones to the system, the
DSGX function does not work.
 Depending on the input stream, the DSGX function
may not be effective.
Using the Sound Effect
Note
DSGX
