CoNTroLLiNg THE TEMPErATurE(sEMi ELECTroNiC CoNTroL)
CONTROLLING THE FREEZER TEMPERATURE
The freezer temperature can be set between -17°C and -24°C to suit your
particular needs. Press the Freezer button repeatedly until the desired
temperature is shown in the temperature display. Keep in mind that foods like ice
cream may melt at -16°C.
The temperature display will move sequentially from -17°C and -24°C. When the
display reaches -17°C, it will begin again at -24°C.
Five seconds after the new...

MAKiNg iCE (oPTioNAL)
- TWIST ICE MAKER
Making Ice CubesRemove the ice cube tray by pulling it towards you.
Fill the tray with water up to the maximum water level
marked on the rear of the tray.
Slide the tray back into the holder, taking care not to
spill the water.
Wait until the ice cubes are formed.
Removing the Ice CubesMake sure that the ice cube storage bin is in place
under the ice cube tray. If not, slide it into place.
Twist one of the levers firmly in the clockwise  direction
until the tray...

Method 1.
Fill the water lifting the round lid in the
arrow direction to open.Method 2.
Please fill the water after holding and
lifting the large lid to open it.
Water
tank
Hand-grip
Dispenser
cock
Round lid
Close the refrigerator door after
fitting the water tank.
•
Confirm that the dispenser cock is
outside after closing the door.
Fix water tank to the fridge door tightly.
If not, water tank may not be operated well.
CAUTION
Place a glass underneath the water outlet and push gently against the...

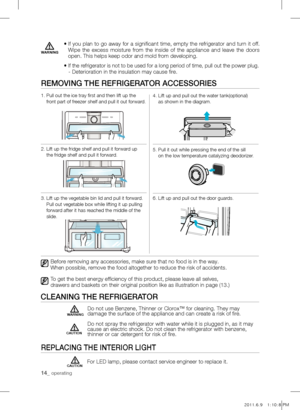

14_ operating
•  If you plan to go away for a significant time, empty the refrigerator and turn it off.
Wipe  the  excess  moisture  from  the  inside  of  the  appliance  and  leave  the  doors
open. This helps keep odor and mold from developing.
•
  If the refrigerator is not to be used for a long period of time, pull out the power plug.   - Deterioration in the insulation may cause fire.
WARNING
Before removing any accessories, make sure that no food is in the way.
When possible, remove the food...

PROBLEMsOLUTION
The appliance is not
operating at all or the
temperature is too
high.•	Check that the power plug is correctly connected.
•	 Is the temperature control on the front panel correctly set?
•	 Does sun shine on the appliance or are there heat sources nearby?
•	 Is the back of the appliance too near to the wall?
The food in the
refrigerator is frozen.•	Is the temperature control on the front panel set to the coldest
temperature?
•	 Is the surrounding temperature too low?
•	 Did you put...

Code No. DA99-01697A REV(0.8)
Ambient Room Temperature Limits
This refrigerator is designed to operate in ambient temperatures specified by its
temperature class marked on the rating plate.
ClassSymbolAmbient Temperature range (°C)
Extended Temperate SN+10 to +32
Temperate N+16 to +32
Subtropical ST+16 to +38
Tropical T+16 to +43

Internal temperatures may be affected by such factors as the location of the refrigerator,
ambient temperature and the frequency with which you open the door. Adjust the...
