Samsung ML 2950ND User Manual

Using Smart Panel713. Useful management tools
9
Changing Smart Panel ‘s settings
Right-click on the Smart Panel icon and select Configure Smart
Panel. Select the settings you want from the Configure Smart
Panel window.
Downloaded From ManualsPrinter.com Manuals

723. Useful management toolsUsing the Linux Unified Driver Configurator
The Unified Driver Configurator is a tool primarily intended for
configuring machine devices. You need to install Unified Linux
Driver to use Unified Driver Configurator (see "Installation for Linux"
on page 8).
After the driver is installed on your Linux system, the Unified Driver
Configurator icon will automatically be created on your desktop.
10
Opening Unified Driver Configurator
1Double-click the Unified Driver...

Using the Linux Unified Driver Configurator733. Useful management tools
Printers tab
View the current system’s printer configuration by clicking on the
machine icon button on the left side of the Unified Driver
Configurator window.
The printer control buttons are, as follows:
•Refresh: Renews the available machines list.
•Add Printer: Allows you to add a new machines.
•Remove Printer: Removes the selected machine.•Set as Default: Sets the current selected machine as a default
machine.
•Stop/Start:...

Using the Linux Unified Driver Configurator743. Useful management tools
•Refresh: Renews the classes list.
•Add Class: Allows you to add a new machine class.
•Remove Class: Removes the selected machine class.
12
Ports configuration
In this window, you can view the list of available ports, check the
status of each port and release a port that is stalled in a busy state
when its owner has terminated the job for any reason.•Refresh: Renews the available ports list.
•Release port: Releases the selected...

4. Special features
This chapter explains special printing features.
• Altitude adjustment 76
• Changing the font setting 77
• Changing the default print settings 78
• Setting your machine as a default machine 79
• Using advanced print features 80
• Using Direct Printing Utility (Windows only) 88
• Using memory/hard drive features 90
• Macintosh printing 92
• Linux printing 94
• Unix printing 97
† The procedures in this chapter are mainly based on Windows 7.
Downloaded From ManualsPrinter.com Manuals

764. Special featuresAltitude adjustment
Print quality is affected by atmospheric pressure, which is
determined by the height of the machine above sea level. The
following information will guide you on how to set your machine for
the best print quality.
Before you set the altitude value, determine the altitude where you
are.
• For Windows and Macintosh users, see "Device Settings" on page
67.
• For Linux users, see "Using Smart Panel" on page 70.

• If your machine is connected to...

774. Special featuresChanging the font setting
Your machine has preset the font for your region or country.
If you want to change the font or set the font for special condition,
such as the DOS environment, you can change the font setting from
Device Settings or Emulation section.
• For Windows and Macintosh user, see "Device Settings" on page
67.
• For Linux, or Unix OS user, see "Using Smart Panel" on page 70.

• If your machine is connected to the network, you can set
the font...

784. Special featuresChanging the default print settings
1Click the Windows Start menu.
2 For Windows Server 2000, select Settings > Printers.
• For Windows XP/Server 2003, select Printer and Faxes.
• For Windows Server 2008/Vista, select Control Panel >
Hardware and Sound > Printers.
• For Windows 7, select Control Panel > Devices and
Printers.
•For Windows Server 2008 R2, select Control Panel >
Hardware > Devices and Printers.
3 Right-click on your machine.
4 For Windows XP/Server 2003/Server...

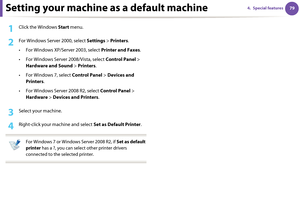

794. Special featuresSetting your machine as a default machine
1Click the Windows Start menu.
2 For Windows Server 2000, select Settings > Printers.
• For Windows XP/Server 2003, select Printer and Faxes.
• For Windows Server 2008/Vista, select Control Panel >
Hardware and Sound > Printers.
• For Windows 7, select Control Panel > Devices and
Printers.
•For Windows Server 2008 R2, select Control Panel >
Hardware > Devices and Printers.
3 Select your machine.
4 Right-click your machine and select...

804. Special featuresUsing advanced print features

XPS printer driver: used to print XPS file format.
• The XPS printer driver can be installed only on Windows
Vista OS or higher.
• Install an optional memory when the XPS job does not
print. The machine might be out of memory.
• For models that provide XPS driver on the software CD:
- You can install the XPS printer driver when you insert
the software CD into your CD-ROM drive. Advanced
Installation > Custom Installation. You can select the
XPS...
