Philips Hts3115 User Manual

31
English
Playing from USB fl ash drive
or USB memory card reader
This DVD system is able to access and
view the data fi les (JPEG, MP3 or
Windows Media™ Audio) in the USB
fl ash drive or USB memory card reader.
Editing and copying the data are not
possible.
A Insert a USB fl ash drive or USB memory
card reader into the USB port on the
front panel.
B A message will appear on the TV for 5
(fi ve) seconds when the device is
detected.
Press DISC/USB to select device
C Press DISC/USB on the...

32
English
Audio Setup Page
Speakers Volume
Speakers Delay
Night Mode
HDMI Audio
CD Upsampling
Lip Sync
General Setup Page
Disc Lock
Display Dim
Program
OSD Language
Screen Saver
DivX(R) VOD Code
Video Setup Page
TV Type
TV Display
Picture Setting
HDMI Setup
DVD Setup Menu Options
Preference Page
Audio
Subtitle
Disc Menu
PBC
MP3/JPEG Nav
Password
DivX Subtitle
Default
Accessing the DVD setup
menu
This DVD system setup is carried out via
the TV, enabling you to customise the
DVD system to suit your...

33
English
General Setup Page (underlined options are the factory default settings)
Disc Lock  Not all discs are rated or coded by the disc maker.  You can
prevent a specifi c disc from playing by locking the disc.  Up to 40
discs can be locked.
{ Lock }  –  Selects this to block the playback of the
current disc.  Subsequent access to a locked
disc requires a six-digit password.  The
default password is ‘136900’ (see ‘Preference
Setup Page - { Password }).
{ Unlock }  –  All discs can be played....

34
EnglishAudio Setup Page (underlined options are the factory default settings)
Speakers Volume  Access the speaker’s level setup menu.  Use W X keys to adjust
the volume level for each connected speaker between -6dB to
+6dB.
Speakers Delay  Access the speaker’s distance setup menu.  Use W X keys to set
the delay times for the centre and rear speakers based on the
listening position and distance.
Note:  1 ms increase/decrease of delay time is equivalent to 30 cm
change in distance.  Use the...

35
EnglishCD Upsampling  This feature enables you to convert your music CD to a higher
sampling rate using sophisticated digital signal processing for
better sound quality.  If you have activated the CD upsampling
feature, the system will automatically switch to stereo mode.
{ Off }  –  Turns off CD-upsampling.
{  88.2 kHz (X2) }  –  Select this to convert the sampling rate of
the CDs twice as high as the original rate.
Note:  If you press the SURR button on the remote control to select...

36

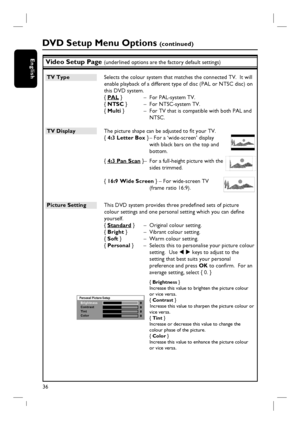

EnglishVideo Setup Page (underlined options are the factory default settings)
TV Type  Selects the colour system that matches the connected TV.  It will
enable playback of a different type of disc (PAL or NTSC disc) on
this DVD system.
{ PAL }  –  For PAL-system TV.
{ NTSC }  –  For NTSC-system TV.
{ Multi }  –  For TV that is compatible with both PAL and
NTSC.
TV Display  The picture shape can be adjusted to fi t your TV.
{ 4:3 Letter Box } – For a ‘wide-screen’ display
with black bars on the...

37
English
DVD Setup Menu Options (continued)
HDMI Setup   It provides the picture settings to enhance the appearance and
picture quality for disc playback.  This feature is only applicable if
you have connected this DVD system to a HDMI-compatible TV/
device.
{ HDMI Video }–  Selects a suitable video resolution depending
on the capability of the connected TV/device
to further enhance the HDMI video output.
{ 480p }
Progressive output in 480 lines for NTSC TV.
{ 576p }
Progressive output in 576 lines...

38
EnglishPreference Setup Page (underlined options are the factory default settings)
Audio  Selects the preferred audio language for DVD playback.
Subtitle  Selects the preferred subtitle language for DVD playback.
Disc Menu  Selects the preferred disc menu language for DVD playback.
Note:  If the selected audio/subtitle/disc menu language is not available
on the DVD, the disc’s default language will be used instead.
PBC  Play Back Control feature is applicable for VCD/SVCD only.  It
allows you to...

39
English
Preference Setup Page (underlined options are the factory default settings)
DivX Subtitle  Selects the font type that supports the recorded DivX subtitle.
{ Standard }   –  Displays a standard list of Roman subtitle
fonts provided by this DVD system.
{ Others }   –  Displays other subtitle fonts.
Default  This feature enables you to reset all the setup menu options and
your personal settings to the factory defaults, except your
password for the Disc Lock.  Press OK to confi rm the default...

40
English
Tu n e r  O p e r a t i o n s
IMPORTANT!
Make sure the FM and MW
antennas are connected.
Tuning to radio stations
A Press SOURCE repeatedly until “FM”
appears on the display panel (or press
TUNER on the remote control).
B Press W / X briefl y on the remote
control to start tuning.
