Panasonic VRF System Ar Conditioner S 07mf2u6_s 09mf2u6_s 12mf2u6_s 15mf2u6_s 18mf2u6_s 24mf2u6_s 36mf2u6_s 48mf2u6_s 54mf2u6 Operating Instructions

F569694
Operating Instructions
VRF System Air Conditioner
Model No.
This air conditioner uses the refrigerant R410A.
Before operating the unit, read these operating instructions thoroughly and keep them for future reference.
* Salt-Air Damage Resistant Specifications.
Indoor Unit
7 9 12 18Nominal Capacity
F2 Low Silhouette DuctedS-07MF2U6
S-24MF2U6
36
U-36LE1U6
U-36LE1U6E*52
U-52LE1U6
U-52LE1U6E*S-09MF2U6 S-12MF2U6 S-18MF2U6Indoor Unit Type Type
Outdoor Units
Nominal Capacity
ME2 2WAY VRF System
MF1 3WAY...

2
CONTENTS
Page
PRODUCT INFORMATION ........................................................................................................... 2
ALERT SYMBOLS......................................................................................................................... 2
INSTALLATION LOCATION ...........................................................................................................3
ELECTRICAL REQUIREMENTS...

3
INSTALLATION LOCATION
• We recommend that this air conditioner be installed properly by qualified installation
technicians in accordance with the Installation Instructions provided with the unit.
 Before installation, check that the voltage of the electric supply in your home or office is the same
as the voltage shown on the nameplate.
ELECTRICAL REQUIREMENTS
SAFETY INSTRUCTIONS
 Read these Operating Instructions carefully before using this air conditioner. If you still
have any difficulties or...

4
 For safety, be sure to turn the air conditioner off and also to disconnect the
power before cleaning or servicing.
 Pull off the power plug from a receptacle, or switch off the breaker, or switch
off the power disconnecting mean to isolate the air conditioner from the
main power supply in case of emergency.
 Do not turn the air conditioner on and off from the power mains switch. Use the ON/
OFF operation button.
 Do not stick anything into the air outlet of the outdoor unit.
This is dangerous...

5
OPERATION CONDITION
Use this air conditioner under the following temperature range.
3 way system
2 way system
Mini VRF system
* DBT: Dry bulb temperature
* WBT: Wet bulb temperatureTemperature range (°F/°C)Indoor Outdoor
*DBT *WBT *DBT *WBT
Heating & CoolingMax. 86/30 –/– 86/30 75/24
Min. 59/15 –/– 16/-8.8 14/-10
CoolingMax. 90/32 77/25 115/46 –/–
Min. 64/17.8 57/14 14/-10 –/–
HeatingMax. 86/30 –/– 75/24 64/17.8
Min. 61/16 –/– -4/-20 -4/-20
Temperature range (°F/°C)Indoor Outdoor
*DBT *WBT *DBT *WBT...

6

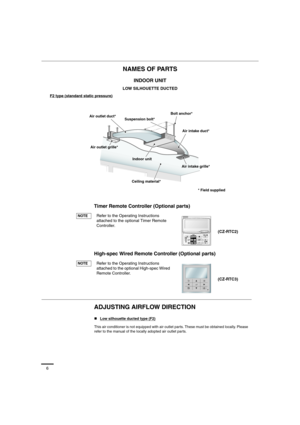

NAMES OF PARTS
Timer Remote Controller (Optional parts)
High-spec Wired Remote Controller (Optional parts)
ADJUSTING AIRFLOW DIRECTION
INDOOR UNIT
LOW SILHOUETTE DUCTED
F2 type (standard static pressure)
Refer to the Operating Instructions
attached to the optional Timer Remote
Controller.
Refer to the Operating Instructions
attached to the optional High-spec Wired
Remote Controller.
„Low silhouette ducted type (F2)
This air conditioner is not equipped with air outlet parts. These must be obtained...

7
SPECIAL REMARKS
How it works Once the room temperature reaches the level that was set, the unit repeats the cycle of
turning on and off automatically.
 In order to prevent the humidity in the room from rising again, the indoor fan also turns off
when the unit stops operating.
 The fan speed is set to ‘‘LO.’’ automatically, and cannot be adjusted.
 ‘‘DRY’’ operation is not possible if the outdoor temperature is 59°F or less.
Heating performance Because this appliance heats a room by utilizing the heat...

8
CARE AND CLEANING
1. For safety, be sure to turn the air conditioner off and also to disconnect the power
before cleaning.
2. Do not pour water on the indoor unit to clean it. This will damage the internal
components and cause an electric shock hazard.
Air intake and outlet side
(Indoor unit)Clean the air intake and outlet side of the indoor unit with a vacuum cleaner brush, or wipe
them with a clean soft cloth.
If these parts are stained, use a clean cloth moistened with a mild liquid detergent....

9
TROUBLESHOOTING
If your air conditioner does not work properly, first check the following points before requesting service. If it still does not work properly,
contact your dealer or a service center.
INDOOR UNIT
OUTDOOR UNITSymptom Cause
Noise Sound like streaming water during
operation or after operation Sound of refrigerant liquid flowing inside unit
 Sound of drainage water through drain pipe
Cracking noise during operation or
when operation stops.Cracking sound due to temperature changes of...

10
CHECK BEFORE REQUIRING SERVICES
If your air conditioner still does not work properly although you checked the points as described above, first stop the operation and
turn off the power switch. Then contact your dealer and report the serial number and symptom. Never repair your air conditioner by
yourself since it is very dangerous for you to do so. You also report if the inspection mark   and the letters E, F, H, L, P in
combination with the numbers appear on the LCD of the remote controller.
TIPS...
