Mini-ECOi Outdoor Unit Electrical Circuits – Line Voltage Power Circuits (CHX03652, Tech Data Manual Page 6-2) FB: Filter Board BD: Bridge Diode Main PCB: Control Board HB HIC Board R/S: Main 208/ 230 VAC to FB Main Power In AC1 & AC2 : Main 208/230 VAC to BD
Page 4
Mini-ECOi Outdoor Unit Electrical Circuits – 280VDC Power Circuits (CHX03652, Tech Data Manual Page 6-2) FB: Filter Board BD: Bridge Diode Main PCB: Control Board HB HIC Board Yel/Blu : 280 VDC from BD to FB HIC+/- : 280 VDC from BD to FB to HIC Main Power In DC280 : 280 VDC from FB to Main PCB; allows LEDs to light on Main PCB
Page 5

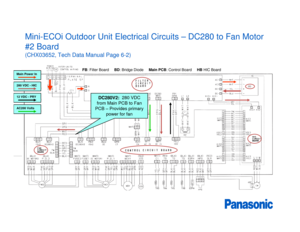

Mini-ECOi Outdoor Unit Electrical Circuits – DC280 to Fan Motor #2 Board (CHX03652, Tech Data Manual Page 6-2) FB: Filter Board BD: Bridge Diode Main PCB: Control Board HB HIC Board Main Power In280 VDC - HIC12 VDC - PRYAC200 Volts DC280V2: 280 VDC from Main PCB to Fan PCB – Provides primary power for fan
Page 6
Mini-ECOi Outdoor Unit Electrical Circuits – Control Feedback to Main PCB (CHX03652, Tech Data Manual Page 6-2) FB: Filter Board BD: Bridge Diode Main PCB: Control Board HB HIC Board Main Power In280 VDC - HIC12 VDC - PRYAC200 Volts 15V2: Control Feedback to Main PCB
Page 7

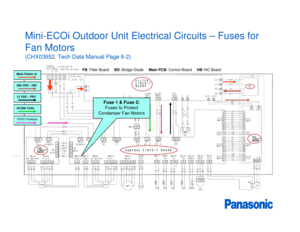

Mini-ECOi Outdoor Unit Electrical Circuits – Fuses for Fan Motors (CHX03652, Tech Data Manual Page 6-2) FB: Filter Board BD: Bridge Diode Main PCB: Control Board HB HIC Board Main Power In280 VDC - HIC12 VDC - PRYAC200 Volts Fuse 1 & Fuse 2: Fuses to Protect Condenser Fan Motors 15VDC Feedback
Page 8
Mini-ECOi Outdoor Unit Electrical Circuits (CHX03652, Tech Data 6-2) WHT: 208/230 VAC from FB to BD Yel/Blu : 280 VDC from BD to FB HIC+/- : 280 VDC from BD to FB to HIC 12 VDC Output to FB DC280 : 280 VDC from FB to Main PCB; allows LEDs to light on Main PCB R/S : Main 208/230 VAC to FB AC200 : 200 VAC from FB to Main PCB AC Volts to Comp. Varies depending upon meter (look for 200 – 450vac), also check Amps HIC BOARD CHECK : 1) Turn Power Off 2) Disconnect HIC+ and HIC- wires,...
Page 9

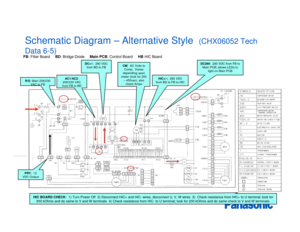

Schematic Diagram – Alternative Style (CHX06052 Tech Data 6-5) AC1/AC2 : 208/230 VAC from FB to BD FB : Filter Board BD: Bridge Diode Main PCB: Control Board HB HIC Board DC+/- : 280 VDC from BD to FB DC280 : 280 VDC from FB to Main PCB; allows LEDs to light on Main PCB R/S: Main 208/230 VAC to FB HIC+/-: 280 VDC from BD to FB to HIC PRY : 12 VDC Output CM : AC Volts to Comp. Varies depending upon meter (look for 200 – 450vac), also check Amps HIC BOARD CHECK : 1)...
