Panasonic St Ht545wee Operating Instructions

RQT8654
21
Using on-screen menus
∫Play Menu
This works only when the elapsed play time can be displayed. It also
works with all JPEG content.
∫ Picture Menu
(Continued on next page)
Other SettingsItems shown differ depending on the type of disc.
Play Speed
[DVD-A]  (Motion picture part)  [DVD-VR] [DVD-V]
To change play speed
– from “ k0.6” to “ k1.4”
≥ Press [ 1PLAY] to return to normal play.
≥ After you change the speed
– Dolby Pro Logic II and Sound Enhancement have
no effect.
– Audio output switches...

RQT8654
22

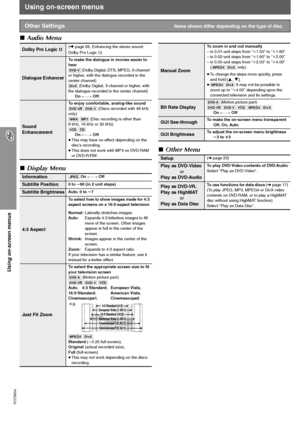

Using on-screen menus
Using on-screen menus
∫Audio Menu
∫Display Menu∫Other Menu
Other SettingsItems shown differ depending on the type of disc.
Dolby Pro LogicII(➜page 28, Enhancing the stereo sound:
Dolby Pro LogicII)
Dialogue Enhancer
To make the dialogue in movies easier to
hear
[DVD-V] (Dolby Digital, DTS, MPEG, 3-channel
or higher, with the dialogue recorded in the
center channel)
[DivX] (Dolby Digital, 3-channel or higher, with
the dialogue recorded in the center channel)
On...

Changing the player settings
RQT8654
23
Changing the player settings
≥The settings remain intact even if you switch the unit to standby.
≥Underlined items are the factory settings in the following table.
∫“Disc” tab
§1Language options
[Continental]Europe]: French, German, Italian, Spanish, Polish, Swedish and Dutch
[Australia[and[N.Z.[ : French, German, Italian, Spanish, Portuguese, Russian and Dutch
§2The original language designated on the disc is selected.§3Input the appropriate code from the language...

RQT8654
24

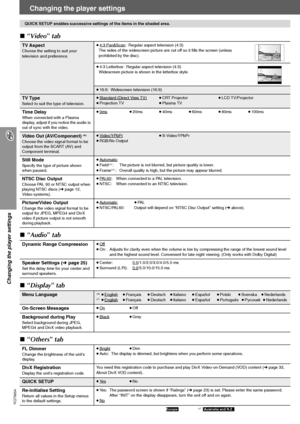

Changing the player settings
Changing the player settings
∫“Video ” tab
∫ “Audio ” tab
∫ “Display ” tab
∫ “Others ” tab
§ 5Refer to “Frame still and field still” ( ➜page 13, Glossary).§6[Continental]Europe]§7[Australia[and[N.Z.\
QUICK SETUP enables successive settings of the items in the shaded area.
TV AspectChoose the setting to suit your
television and preference. ≥
4:3 Pan&Scan: Regular aspect television (4:3)
The sides of the widescreen picture are cut off so it fills the screen (unless...

RQT8654
25
Changing the player settings
(Effective when playing multi-channel audio)
(Center and surround speakers only)
For optimum listening with 5.1-channel sound, all the speakers, except for
the subwoofer, should be the same distance from the seating position.
If you have to place the center or surround speakers closer to the seating
position, adjust the delay time to make up for the difference.
If either distance a or b is less than c, find the difference in the table
and change to the...

RQT8654
26
Using the radio
Using the radio
Up to 15 stations can be set in each band, FM and AM.When a stereo FM broadcast is being received,
“ST” lights in the display.
∫
If noise is excessive
When “FM” is selected
Press and hold [—FM MODE] on the main unit to
display “MONO”.
Press and hold [—FM MODE] again to cancel the mode.
≥The mode is also canceled when you change the frequency.
When “AM” is selected
Press [FUNCTIONS] on the remote control.Each time you press the button: BP 2 ()BP 1
∫Presetting...

RQT8654
27
Using the radio
[Continental]Europe\
The unit can display the text data transmitted by the radio data system
(RDS) available in some areas.
If the station you are listening to is transmitting RDS signals, “RDS” will
light up on the display.
When “FM” is selected
Press [FUNCTIONS] to display the text data.Each time you press the button:
PS (factory preset)>PTY > Frequency display
^----------------------------------------------------------}
§“M.O.R. M”=Middle of the road music
[Note]RDS...

RQT8654
28
Using sound effects
Using sound effects
[Note]≥The following sound effects may not be available or have no effect
depending on the type of source, or when headphones are used.
≥ You may experience a reduction in sound quality when these sound
effects are used with some sources. If this occurs, turn the sound effects
off.
Press [SFC].
Each time you press the button:
FLAT: Cancel (no effect is added) (factory preset).
MOVIE: Use this mode when playing movie software.
SPORT: Simulates sound to...

RQT8654
29
Using sound effects
You can enhance low-frequency sound so that heavy bass sound can be
heard clearly, even if the acoustics of your room are not optimal. The unit
automatically selects the most suitable setting according to the type of
playing source.
Press [-H.BASS].
≥[DVD-V]  [DVD-VR]
H.BASS ON (factory preset) ,------.H.BASS OFF
≥ When another source is selected
H.BASS OFF (factory preset) ,------.H.BASS ON
The setting you make is retained, and recalled every time you play from
the...

RQT8654
30
Using other useful functions
Using other useful functions
Press [SLEEP] to select the time (in minutes).
SLEEP 30_----)SLEEP 60 _----)SLEEP 90
^""""  OFF(_  SLEEP120 (__}
To cancel the timer
Press [SLEEP] to select “OFF”.
To confirm the remaining time
Press [SLEEP] again.
To change the setting
Repeat the procedure from the beginning.
Press [MUTING].
“MUTING” flashes on the unit’s display.
To cancel
≥Press [MUTING] again or reduce the volume to minimum “VOL 0”, and
then raise...
