Panasonic Microwave Oven Nn P794_sn747_sn757_sn797_t945_sn947_sn957_sn977 Operating Instructions

9

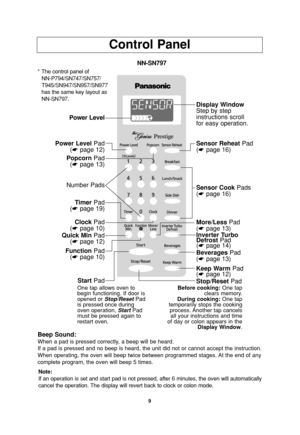

Control Panel
Beep Sound:
When a pad is pressed correctly, a beep will be heard.
If a pad is pressed and no beep is heard, the unit did not or cannot accept the instruction.
When operating, the oven will beep twice between programmed stages. At the end of any
complete program, the oven will beep 5 times.
Power Level
Popcorn Pad
(☛page 13)
Power LevelPad
(☛page 12)
TimerPad
(☛page 19)
Quick MinPad
(☛page 12)
StartPad
FunctionPad
(☛page 10)
ClockPad
(☛page 10) Number Pads
Sensor Reheat Pad
(☛page 16)...

1.
10
Setting the Clock
Example: To set 11:25 a.m. or p.m.
• Press Clockonce.
➤Colon flashes.
2.• Enter time of day using
the number pads.
➤Time appears in
the display window;
colon continues
flashing.
3.•Press Clock.
➤Colon stops flash-
ing; time of day is
entered.
NOTES:
1. To reset the clock, repeat step 1-3.
2. The clock will retain the time of day as
long as the oven is plugged in and
electricity is supplied.
3. Clock is a 12 hour display.
4. Oven will not operate while colon is
flashing.
This...

11

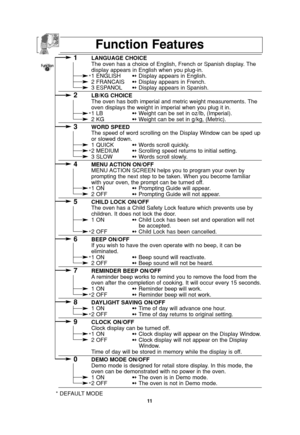

1LANGUAGE CHOICE
The oven has a choice of English, French or Spanish display. The
display appears in English when you plug-in.
1 ENGLISH➻ Display appears in English.
2 FRANCAIS➻ Display appears in French.
3 ESPANOL➻Display appears in Spanish.
2LB/KG CHOICE
The oven has both imperial and metric weight measurements. The
oven displays the weight in imperial when you plug it in.
1 LB➻ Weight can be set in oz/lb, (Imperial).
2 KG➻ Weight can be set in g/kg, (Metric).
3WORD SPEED
The speed of word...

12

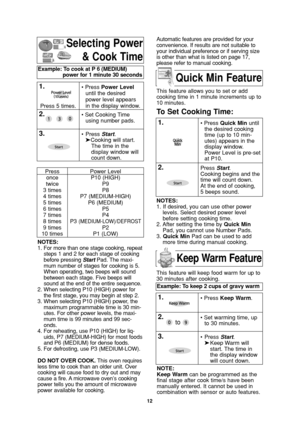

Selecting Power
& Cook Time
NOTES:
1. For more than one stage cooking, repeat
steps 1 and 2 for each stage of cooking
before pressing StartPad. The maxi-
mum number of stages for cooking is 5.
When operating, two beeps will sound
between each stage. Five beeps will
sound at the end of the entire sequence.
2. When selecting P10 (HIGH) power for
the first stage, you may begin at step 2.
3. When selecting P10 (HIGH) power, the
maximum programmable time is 30 min-
utes. For other power levels, the maxi-...

13

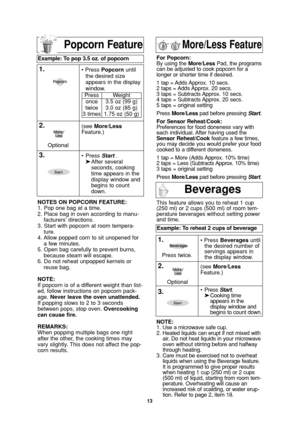

NOTES ON POPCORN FEATURE:
1. Pop one bag at a time.
2. Place bag in oven according to manu-
facturers’ directions.
3. Start with popcorn at room tempera-
ture.
4. Allow popped corn to sit unopened for
a few minutes.
5. Open bag carefully to prevent burns,
because steam will escape.
6. Do not reheat unpopped kernels or
reuse bag.
NOTE:
If popcorn is of a different weight than list-
ed, follow instructions on popcorn pack-
age. Never leave the oven unattended.
If popping slows to 2 to 3 seconds
between...

14

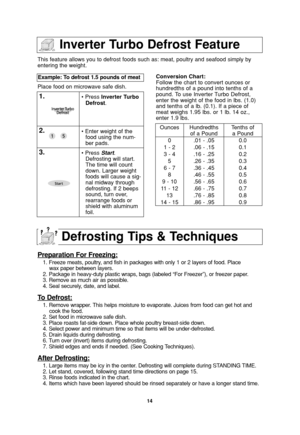

This feature allows you to defrost foods such as: meat, poultry and seafood simply by
entering the weight.
Place food on microwave safe dish.Example: To defrost 1.5 pounds of meat
1.• Press Inverter Turbo
Defrost.
2.• Enter weight of the
food using the num-
ber pads.
3.• Press Start.
Defrosting will start.
The time will count
down. Larger weight
foods will cause a sig-
nal midway through
defrosting. If 2 beeps
sound, turn over,
rearrange foods or
shield with aluminum
foil.Conversion Chart:
Follow...

15

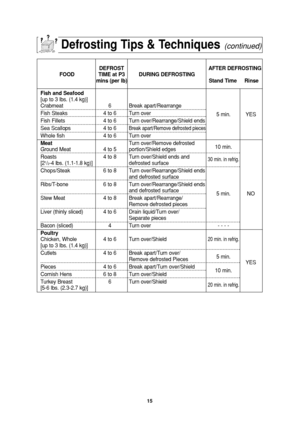

Defrosting Tips & Techniques(continued)
DEFROST AFTER DEFROSTING
FOOD TIME at P3 DURING DEFROSTING
mins (per lb) Stand Time     Rinse
Fish and Seafood
[up to 3 lbs. (1.4 kg)]
Crabmeat 6 Break apart/Rearrange
Fish Steaks 4 to 6 Turn over
5 min. YES
Fish Fillets 4 to 6 Turn over/Rearrange/Shield ends
Sea Scallops 4 to 6
Break apart/Remove defrosted pieces
Whole fish 4 to 6 Turn over
MeatTurn over/Remove defrosted
Ground Meat 4 to 5 portion/Shield edges10 min.
Roasts 4 to 8 Turn over/Shield ends and
30...

16

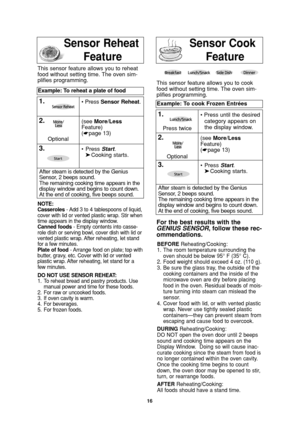

Sensor Reheat
FeatureSensor Cook
Feature
NOTE:
Casseroles- Add 3 to 4 tablespoons of liquid,
cover with lid or vented plastic wrap. Stir when
time appears in the display window.
Canned foods- Empty contents into casse-
role dish or serving bowl, cover dish with lid or
vented plastic wrap. After reheating, let stand
for a few minutes.
Plate of food- Arrange food on plate; top with
butter, gravy, etc. Cover with lid or vented
plastic wrap. After reheating, let stand for a
few minutes.
DO NOT USE...

17

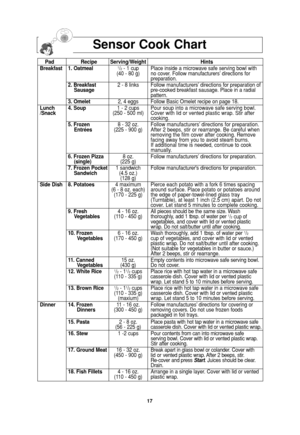

Sensor Cook Chart
Pad Recipe Serving/Weight Hints
Breakfast 1. Oatmeal1/2- 1 cup Place inside a microwave safe serving bowl with
(40 - 80 g) no cover. Follow manufacturers’ directions for
preparation.
2. Breakfast 2 - 8 links Follow manufacturers’ directions for preparation of
Sausagepre-cooked breakfast sausage. Place in a radial
pattern.
3. Omelet2, 4 eggs Follow Basic Omelet recipe on page 18.
Lunch 4. Soup1 - 2 cupsPour soup into a microwave safe serving bowl.
/Snack(250 - 500 ml)Cover with lid...

18
Microwave Recipes
OMELET
Basic Omelet1tablespoon butter or margarine
2eggs
2tablespoons milk
salt and ground black pepper, if desired
Heat butter in a microwave safe 9-inch pie
plate, 20 seconds at P10, or until melted.
Turn the plate to coat the bottom with butter.
Meanwhile, combine the remaining
ingredients in a separate bowl, beat together
and pour into the pie plate.
Cook, covered with vented plastic wrap,
using OMELET selection. Let stand 2 min-
utes. With a spatula, loosen the edges of the...
