Preparation
21
∫Temporarily storing the lens hood
11Remove the lens hood, reverse
it and then adjust D on the
lens hood to E on the lens
hood adaptor.
2Insert the lens hood straight to
the lens hood adaptor.
3Rotate the lens hood
counter-clockwise until it
clicks.
2Attach the lens cap.
 Do not take a picture while the lens
hood is temporarily stored.
 Ensure that the lens cap is firmly
attached.
 When the lens hood is attached,
unstrap the lens cap and attach the lens
cap only.
 When...

Preparation
22

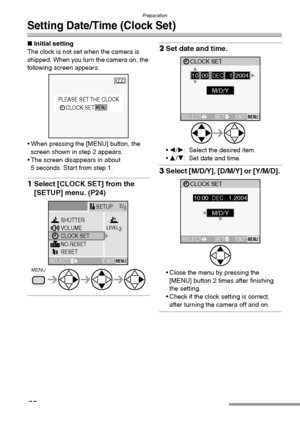

Setting Date/Time (Clock Set)
∫Initial setting
The clock is not set when the camera is
shipped. When you turn the camera on, the
following screen appears.
 When pressing the [MENU] button, the
screen shown in step 2 appears.
 The screen disappears in about
5 seconds. Start from step 1.
1Select [CLOCK SET] from the
[SETUP] menu. (P24)
2Set date and time.
2/1: Select the desired item.
3/4: Set date and time.
3Select [M/D/Y], [D/M/Y] or [Y/M/D].
 Close the menu by pressing the...

Preparation
23
 When fully charged battery has been
inserted for more than 24 hours, the clock
setting is stored (in the camera) for at
least 3 months even if the battery is
removed. (The storing time may be
shorter if the battery is not charged
sufficiently.)
If more than 3 months has passed, the
clock setting will be lost. In this case, set
the clock again.
 You can set the year from 2000 to 2099.
The 24-hour system is used.
 If you do not set the date, the date cannot
be printed when you...

Preparation
24
Setup Menu
1Turn the camera on.
2Press the [MENU] button.
 The menu screen in simple mode [ ]
is different from the above screen.
(P36)
3Select the [SETUP] Menu.
 When rotating the zoom lever A toward
T, the page of the menu screen can be
forwarded. (vice versa)
4Select the desired item.
5Set the desired value.
 Close the menu by pressing the shutter
button halfway or the [MENU] button
after finishing the setting.
OFF ON
AUTO
2016
OFF AUTOMENUSENSITIVITY
QUALITY
AUDIO REC....

Preparation
25
You can control the following items on [SETUP] Menu.
MenuFunctions
MONITOR/
FINDER Adjust the brightness of the LCD monitor (when pictures appear
on the LCD monitor) or Viewfinder (when pictures appear on the
Viewfinder) in 7 steps.
AUTO REVIEW[OFF]:The recorded picture does not automatically appear.
[1SEC.]:The recorded picture automatically appears on the
screen for about 1 second.
[3SEC.]:The recorded picture automatically appears on the
screen for about 3 seconds.
[ZOOM]:The...

Preparation
26
MenuFunctions
BEEP Set to select the volume of operational sound.
[]:No operational sound
[]:Soft operational sound
[]:Loud operational sound
 The operational sound setting is also reflected on simple mode
[].
SHUTTER Set to select the volume of shutter sound.
[]:No shutter sound
[]:Soft shutter sound
[]:Loud shutter sound
VOLUME The volume of speakers can be adjusted in 7 steps.
 When you connect the camera to a TV, the volume of the
speakers of the TV is not changed.
CLOCK SET...

Preparation
27
MenuFunctions
SCENE MENU[OFF]:Scene menu does not appear when setting the mode
dial to scene mode and the camera is operated in the
scene mode currently selected. If you change the
scene mode, press the [MENU] button to display the
scene menu and then select the desired scene mode.
[AUTO]:Scene menu appears automatically when setting the
mode dial to scene mode. Select the desired scene
mode.
LANGUAGE Set to the language on the menu screen from the following
7 languages.
Set to the...

Preparation
28
About the LCD Monitor/Viewfinder
1Switching the LCD monitor/Viewfinder
Press the [EVF/LCD] button to switch to the
screen you would like to turn on.
ALCD monitor (LCD)
BViewfinder (EVF)
 When the LCD monitor turns on, the
Viewfinder turns off (and vice versa).
2Selecting the screen to be used
Press the [DISPLAY] button to switch to the
screen to be used.
 When the menu screen appears, the
[DISPLAY] button is not activated. During
9 pictures multi playback (P49) or
playback zoom...

Preparation
29
∫Out-of-frame display
The recording information is displayed out
of the recording screen, therefore, you can
take pictures without interruption by icons
or others on the recording screen.
∫Diopter adjustment
This feature is handy for users who wear
corrective lenses and prefer to use the
Viewfinder.
 Press the [EVF/LCD] button to display the
Viewfinder.
Adjust the diopter, rotating the diopter
adjustment dial.
∫Monitor priority
When setting [PLAY ON LCD] to [ON] on
the [SETUP]...

Preparation
30
∫Histogram
 A histogram is a graph that displays
brightness along the horizontal axis (black
to white) and the number of pixels at each
brightness level on the vertical axis.
 It allows the camera user to easily check
the way a picture is being exposed.
 It is very useful if manual adjustments of
the lens aperture and shutter speed are
available, especially in those situations
where automatic exposure may be difficult
due to uneven lighting. Using the
histogram feature will...
