Panasonic Hdc Sd90 Owners Manual

151VQT3J56
High Definition Video Camera
Information for your safety
Others

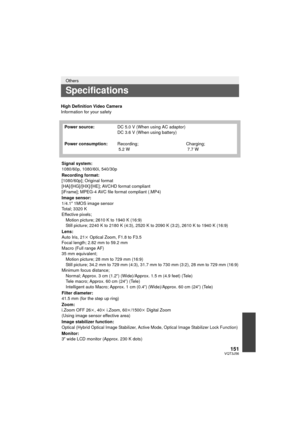

Specifications
Power source:DC 5.0 V (When using AC adaptor)
DC 3.6 V (When using battery)
Power consumption: Recording;
 5.2 W Charging;
 7.7 W
Signal system:
1080/60p, 1080/60i, 540/30p
Recording format:
[1080/60p]; Original format
[HA]/[HG]/[HX]/[HE]; AVCHD format compliant
[iFrame]; MPEG-4 AVC file format compliant (.MP4)
Image sensor:
1/4.1z  1MOS image sensor
Total; 3320 K
Effective pixels; Motion picture; 2610 K to 1940 K...

152VQT3J56
Microphone:
Stereo (with a zoom microphone function)
Speaker:
1 round speaker, dynamic type
White balance adjustment:
Auto tracking white balance system
Standard illumination:
1,400 lx
Minimum required illumination:
Approx. 4 lx (1/30 with Low light mode in the Scene mode)
Approx. 1 lx with the Color Night Rec function
AV multi connector video output level:
Component video output level;Y; 1.0 Vp-p, 75 h
Pb; 0.7 Vp-p, 75 h
Pr; 0.7 Vp-p, 75 h
AV video output level; 1.0 Vp-p, 75 h, NTSC system...

153VQT3J56
∫3D Conversion Lens (optional)
∫ Motion pictures
Mass (Weight):
Approx. 244
g (Approx. 0.54 lbs.)
[without battery (supplied) and an SD card (optional)]
Approx. 245
g (Approx. 0.54 lbs.)
[without battery (supplied)]
Mass (Weight) in operation:
Approx. 288
g (Approx. 0.63 lbs.)
[with battery (supplied) and an SD card (optional)]
Approx. 287
g (Approx. 0.63 lbs.)
[with battery (supplied)]
Operating temperature:
0°Cto40°C (32°Fto104°F)
Operating humidity:
10%RH to 80%RH
Battery operation time:...

154VQT3J56
∫Still pictures
AC adaptor
Information for your safety
Specifications may change without prior notice.Picture size:
[1080/60p]; 1920
k1080/60p
[HA]/[HG]/[HX]/[HE]; 1920k 1080/60i
[iFrame]; 960 k540/30p
Audio compression:
[1080/60p],[AVCHD]; Dolby Digital/2 ch (built-in microphone/external microphone)
[iFrame]; AAC/2 ch
Recording media:
SD Memory Card (FAT12 and FAT16 system compliant)
SDHC Memory Card (FAT32 system compliant)
SDXC Memory Card (exFAT system compliant)
Refer to page 22 for...

155VQT3J56
*1 Please refer to page 21, concerning the battery charging time and available recording time.
*2 To use the VW-LDC103PP, the shoe adaptor/VW-SK12PP and the battery pack/
VW-VBG130, VW-VBG260 are required. To charge the battery pack/VW-VBG130,
VW-VBG260, the AC adaptor/VW-AD21PP-K, VW-AD20PP-K is required.
Others
Optional accessories
Accessory No.FigureDescription
VW-BC10PP Battery charger
VW-VBK180*
1Rechargeable Lithium Ion Battery
Pack
VW-VBK360*
1Rechargeable Lithium Ion Battery
Pack...

156VQT3J56
NOTE:Accessories and/or model numbers may vary by country. Please consult your local dealer.Product numbers correct as of Jan. 2011. These may be subject to change.
Accessory No.FigureDescription
RP-SDN16GU1A
RP-SDN08GU1A
RP-SDN04GU1A
RP-SDN02GU1A
Class 4 16 GB SDHC Memory CardClass 4 8 GB SDHC Memory Card
Class 4 4 GB SDHC Memory Card
Class 4 2 GB SD Memory Card
RP-SDW64GU1K
RP-SDW48GU1K
RP-SDW32GU1K
RP-SDW16GU1K
RP-SDW08GU1K
RP-SDW04GU1K
Class 10 64 GB SDXC Memory Card
Class 10 48 GB SDXC...

157VQT3J56
∫Attaching the supplied shoe adaptor
Insert the shoe adaptor into the shoe adaptor mount.
When removing the shoe adaptor, slide the SHOE ADAPTOR RELEASE lever, and
remove the shoe adaptor while sliding the lever.
SHOEADAPTORRELEASE
HDC-SD90&TM90-P-VQT3J56_mst.book  157 ページ  ２０１１年１月１３日　木曜日　午前９時１８分

158VQT3J56
Accessory Order Form (For USA and Puerto Rico Customers)
In CANADA, please contact your local Panasonic dealer for more information on
Accessories.
TO OBTAIN ANY OF OUR ACCESSORIES YOU CAN DO ANY OF THE FOLLOWING:
VISIT YOUR LOCAL PANASONIC DEALER  OR
CALL PANASONIC’S ACCESSORY ORDER LINE AT 1-800-332-5368  [6 AM-6 PM M-F, PACIFIC TIME] OR
MAIL THIS ORDER TO:  PANASONIC SERVICE AND TECHNOLOGY COMPANY  ACCESSORY ORDER OFFICE
20421 84th  A

venue South Kent, WA. 98032
Ship To:
Mr.
Mrs....

159VQT3J56
Others
Limited Warranty (ONLY FOR U.S.A. AND PUERTO RICO)
 Panasonic Consumer Electronics Company,
Division of Panasonic Corporation of North America
One Panasonic Way, Secaucus, New Jersey 07094
 Panasonic Camcorder Products  Limited Warranty
 Limited Warranty Coverage (For USA and Puerto Rico Only)  If your product does not work properly because of a defect in materials or workmanship,
Panasonic Consumer Electronics Company (referred to as “the warrantor”) will, for the length of
the...

160VQT3J56
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED
WARRANTY COVERAGE”.
THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES
RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF
THIS WARRANTY.
(As examples, this excludes damages for lost time, travel to and from the servicer, loss of or
damage to media or images, data or other memory or recorded content. The items listed are not
exclusive, but for illustration only.)
ALL EXPRESS AND...
