Page 11
10 INSTALLATION Amplifier Connection (To Audio Amp) Connect to an external audio amplifier input for listening to a stereo system. Note:TO AUDIO AMP terminals cannot be connected directly to external speakers. Audio Adjustments 1. Select TV SPEAKERS ON from AUDIO menu. 2. Set amplifier volume to minimum. 3. Adjust TV volume to desired level. 4. Adjust amplifier volume to match the TV. 5. Select TV SPEAKERS OFF&VAO from AUDIO menu. 6. Volume, mute, bass, treble and balance are now controlled from the...
Page 12
11 MAIN MENU Main Menu ACTION Button Press the ACTION button to display the Main Menu and submenus. Press the ACTION button repeatedly to exit. CH / VOL Buttons Press the CH (channel) or VOL (volume) buttons to select an icon. Use the CH buttons to highlight the desired features. Use VOL buttons to select and adjust features. Remote Control Buttons Remote Control Guide The Remote Control Quick Reference Guide is located within the package provided with this TV. Main Menu EXIT...
Page 13
12 MAIN MENU FEATURE CHART Main Menu Feature Chart MENUDESCRIPTION SET UP SET TIMEWhen entered, TIME will display on screen after pressing POWER button, RECALL button, or changing channels. ANTChoose CABLE or TV to match the signal at your antenna input. AUTO PROGAutomatically program channels with a signal into memory. MANUAL PROGManually add or delete channels from memory. AUTO POWER ONSelect SET to power up the TV at the same time as the Cable Box or other components or select OFF. CC MODESelect...
Page 14
13 MAIN MENU FEATURE CHART TIMER SLEEP TIMERProgram TV to automatically turn off in 30, 60, or 90 minutes. Select NO to turn timer off. PROGRAM TIMERProgram TV to automatically turn on and off at selected time on a selected channel, daily or only one day. PICTURE PICTURE NORMReset all picture adjustments to factory default settings. COLORAdjust desired color intensity. TINTAdjust natural flesh tones. BRIGHTNESSAdjust dark areas for crisp detail. PICTUREAdjust white areas of picture. SHARPNESSAdjust...
Page 15
14 SPECIAL FEATURES Special Features SET UP Menu Languages In SETUP menu, select ENGLISH, ESPAÑOL (Spanish), or FRANÇAIS (French) to change the menu language. Timer Sleep Timer In TIMER menu, program to turn TV OFF in 30, 60, or 90 minutes. Select NO to turn off timer. Program Timer In Timer menu, program TV to automatically turn on and off at selected time on a selected channel, daily or one day. Note:TIME must be entered in the SETUP menu to operate PROGRAM TIMER. SET-UP SET TIME _ _ : _ _ AM...
Page 16
15 SPECIAL FEATURES CH CAP (Channel Caption) Program channel captions (station labels) for 30 stations using up to four characters. Use the numeric keypad for entering numbers unavailable with the select arrows. Note:Delete channel captions by entering dashes (-) in all four character slots. Turn Off After 90 Minutes The TV automatically turns OFF after 90 minutes when turned on by the PROGRAM TIMER. If the OFF time is programmed or if a key is pressed, the automatic OFF after 90 minutes will be...
Page 17
16 SPECIAL FEATURES LOCK Game Guard Lock and Unlock Select GAME GUARD to prevent video games and videotapes from being viewed. Lock Channel 3, Channel 4, and video inputs for 12, 24, 48 hours or ALWAYS by entering a four-digit secret code, then selecting GAME GUARD ON. Note:Understand how to unlock GAME GUARD before using it. Use a code that is easy to remember or record it in a safe place. Unlock GAME GUARD by reentering your four-digit secret code, then selecting GAME GUARD OFF. Note:If GAME GUARD is...

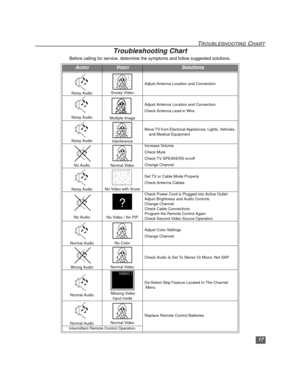

Page 18
17 TROUBLESHOOTING CHART Troubleshooting Chart Before calling for service, determine the symptoms and follow suggested solutions. AUDIOVIDEOSolutions Noisy Audio Snowy Video Adjust Antenna Location and Connection Noisy AudioMultiple Image Adjust Antenna Location and Connection Check Antenna Lead-in Wire Noisy AudioInterference Move TV from Electrical Appliances, Lights, Vehicles, and Medical Equipment No Audio Normal Video Increase Volume Check Mute Check TV SPEAKERS on/off Change Channel Noisy AudioNo...
Page 19
18 NOTES Notes Panasonic Consumer Electronics Company, Division of Matsushita Electric Corporation of America One Panasonic Way Secaucus, New Jersey 07094 www.panasonic.comPanasonic de Mexico, S.A, de C.V. Amores No. 1120 Col. Del Valle C.P. 03100 México, D.F. Tel. (915 ó 015) 488-1000 Fax (915 ó 015) 575-6763, 575-6765Panasonic Sales Company, Division of Matsushita Electric of Puerto Rico Inc. (“PSC”) Ave. 65 de Infantería, Km 9.5 San Gabriel Industrial Park Carolina, Puerto Rico 00985 Tel. (787)...
Page 20
® ® Color Television Operating Instructions CT-20SX11 CT-F2111CT-F2111X CT-F2121L TQB2AA0407 10607 PRINTED IN USA Televisor a color Instrucciones de Operación CT-20SX11 CT-F2111CT-F2111X CT-F2121L TQB2AA0407 10607 IMPRESO EN EE.UU. For assistance, please call: 1-800-211-PANA (7262) or send e-mail to: [email protected] (USA only) Para asistencia llame al teléfono: 1-800-211-PANA (7262) o envíe un correo electrónico a la dirección: [email protected] (Solo en Estados Unidos) 0407...
