Panasonic Color Television Dvd Combo Ct 20dc50 Operating Instructions

20
SPECIAL FEATURES
Timer (cont.)
CH CAP (Channel Caption)
Program channel captions (station labels) for 30 stations using up to four characters.  Use the
numeric keypad for entering numbers unavailable with the select arrows.
Note:Delete channel captions by entering dashes (-) in all four character slots.
  Turn Off After 90 Minutes
The TV automatically turns OFF after 90 minutes when
turned on by the PROGRAM TIMER.  If the OFF time is
programmed or if a key is pressed, the automatic OFF
after 90...

SPECIAL FEATURES
21

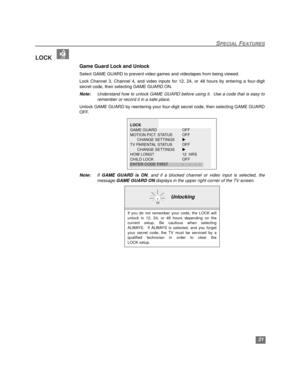

LOCK
Game Guard Lock and Unlock
Select GAME GUARD to prevent video games and videotapes from being viewed.
Lock Channel 3, Channel 4, and video inputs for 12, 24, or 48 hours by entering a four-digit
secret code, then selecting GAME GUARD ON.
Note:Understand how to unlock GAME GUARD before using it.  Use a code that is easy to
remember or record it in a safe place.
Unlock GAME GUARD by reentering your four-digit secret code, then selecting GAME GUARD
OFF.
Note:If GAME GUARD is ON,...

22

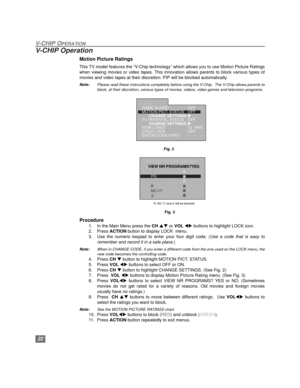

V-CHIP OPERATION
V-CHIP Operation
Motion Picture Ratings
This TV model features the “V-Chip technology” which allows you to use Motion Picture Ratings
when viewing movies or video tapes. This innovation allows parents to block various types of
movies and video tapes at their discretion. PIP will be blocked automatically.
Note:Please read these instructions completely before using the V-Chip.  The V-Chip allows parents to
block, at their discretion, various types of movies, videos, video games and...

V-CHIP OPERATION
23
V-Chip Operation (cont.)
Motion Picture Ratings Chart
TV Parental Guide
This TV model features the “V-Chip technology” which allows you to use TV Parental Guide
ratings when viewing TV programs. This innovation allows parents to block various types of  TV
Programming at their discretion.

Fig. 4
Fig. 5
Procedure
1. In the Main Menu press the CH pq or VOL tu buttons to highlight LOCK icon.
2. Press ACTION button to display LOCK  menu.
3. Use the numeric keypad to enter your...

24
V-CHIP OPERATION

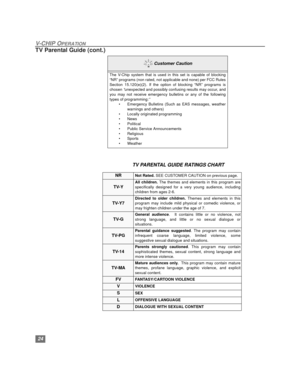

TV Parental Guide (cont.)

TV PARENTAL GUIDE RATINGS CHART

Customer Caution
The V-Chip system that is used in this set is capable of blocking
“NR” programs (non rated, not applicable and none) per FCC Rules
Section 15.120(e)(2). If the option of blocking “NR” programs is
chosen
“unexpected and possibly confusing results may occur, and
you may not receive emergency bulletins or any of the following
types of programming:
”
• Emergency Bulletins (Such as EAS messages, weather...

V-CHIP OPERATION
25
Blocking Message
If V-Chip is enabled and the program exceeds the rating limit set by the user, the blocking
message will appear and the audio will be muted.  (See Fig. 6).  Enter your code if you wish to
continue viewing the program.  After entering the code, all locks and ratings are disabled until
the TV is turned off or until all settings are off.
Fig. 6

Child Lock
This feature allows parents to lock the DVD disc tray to prevent  children from playing DVDs or
CDs. To unlock...

26
REMOTE CONTROL BUTTONS - DVD OPERATION
Remote Control Buttons - DVD Operation
 DVD Quick Reference Functional Chart
Remote
KeyDescription
TOP MENUDisplays the complete menu of the particular DVD with top most item
highlighted.
MENUPress MENU during play.  The DVD menu available on the disc is now
displayed.  Press MENU again to resume play.
ANGLEPress ANGLE during play.  Number of angle being played back is dis-
played.  Press pquntil the preferred angle is selected. Press ANGLE
or ENTER to clear...

REMOTE CONTROL BUTTONS - DVD OPERATION
27
Remote
KeyDescription
A-B REPEAT
Press A-B REPEAT during play at the point where repeat play is to
start (A).  Press A-B REPEAT at the point where repeat play is to be
concluded (B). To return to normal play press A-B REPEAT several
times until “OFF” is displayed.
VSSThis set can reproduce a virtual surround sound effect. Press VSS
during play.
NUMPress NUM key in DVD mode to access the number keys.
When the MENU continues onto another screen, press RETURN...

28
REMOTE CONTROL BUTTONS - DVD OPERATION
TOP MENU
Press TOP MENU during Play. This will bring up the DVD menu with  the top menu
highlighted. Press ENTER button twice to exit TOP MENU.
MENU
DVDs may offer special menus. These menus may include guides to unique contents,
audio subtitle, languages, special features, etc. Contents and operation may vary
depending on the disc. Following steps show the basic procedure.
1. Press MENU during play. The menu of the particular disc is displayed.
2. Press...

REMOTE CONTROL BUTTONS - DVD OPERATION
29
SUBTITLE
Changing subtitle language (DVD)
It is sometimes possible to change subtitles to a different language.  This operation
works only with discs on which multiple subtitle languages are available.
Press SUBTITLE during play.
When no subtitles are available,  “--” will be displayed instead of the language number.

Press the cursor buttons (pq) until the preferred language is selected.
Pressing the numeric buttons also selects the subtitle language.
Press...
