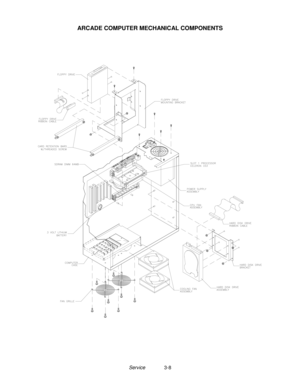

Service3-8 ARCADE COMPUTER MECHANICAL COMPONENTS
Page 52
Parts4-1 HYDROTHUNDER C H A P T E R F O U R PARTS WARNING: USE OF NON-MIDWAY PARTS OR CIRCUIT MODIFICATIONS MAY CAUSE SERIOUS INJURY OR EQUIPMENT DAMAGE! USE ONLY MIDW AY AUTHORIZED PARTS. For safety and reliability, substitute parts and modifications are not recommended. Substitute parts or modifications may void EMC directives or FCC type acceptance.
Page 53
Parts4-2 CABINET FRONT VIEW 4420-01141-00 08-7456-16 5675-15639-00 01-10819 4420-01141-00 03-9306 5555-15098-004408-01128-00 24-8809 A-22506 4008-01113-06
Page 54
Parts4-3 MARQUEE ASSEMBLY 4108-01193-10B 01-13562.1 08-7456-17 31-3440 4108-01219-11 03-8252-2 03-9373-1
Page 55
Parts4-4 CABINET REAR VIEW
Page 56
Parts4-5 REAR DOOR ASSEMBLY A-20281 03-76024108-01219-11 01-11291 4420-01141-00 20-10350 4320-01123-20B 4320-01123-20B 04-10149.1 4420-01141-00 01-7264 01-8989 01-11285
Page 57
Parts4-6 COIN DOOR ASSEMBLY (See coin door application chart for assembly and part numbers) #259 OR #55524-8768
Page 58
Parts4-7 COIN DOOR ASSEMBLY cont’d (See coin door application chart for assembly and part numbers) A-21069
Page 59

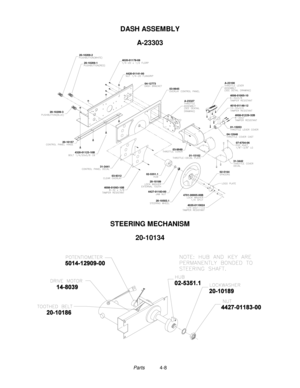

Parts4-8 DASH ASSEMBLY A-23303 4420-01141-00 4427-01183-00 20-10503.14020-0110024 4701-00005-00B 02-5351.1 20-10189 4008-01093-10B 03-9312 31-3441 20-10157 4320-01123-10B01-15102 07-6704-06 04-12646 A-23327 20-10209-1 20-10209-2 20-10209-3 03-9945 04-12773 4020-01178-08 01-15053 4008-01229-32B 4010-01148-12 4006-01005-10 A-23100 31-3442 03-9949 02-5164 STEERING MECHANISM 20-10134
Page 60
Parts4-9 THROTTLE ASSEMBLY A-23327 02-5340 4010-01070-10 4700-00021-00 03-9774 4010-01070-0804-11297 02-5338 02-5339 4006-01076-04 17-1131 4700-00021-00 02-5337 4010-01070-08 10-531 01-14897 04-11295 01-14896 03-9778 4410-01129-00 10-532 03-9920 4410-01129-00 20-8712-18 02-5352 A-23220 4020-01178-10 04-12643.1 01-14947 20-8712-50 20-10517
