Dell U2415 Manual

Operating the Monitor    |   41
Input Color
FormatAllows you to set the video input mode to:
RGB: Select this option if your monitor is connected to a computer (or
DVD player) using the HDMI cable (or DisplayPort cable); or MHL
devices using MHL cable.
YPbPr: Select this option if your monitor is connected to a DVD player
by YPbPr using HDMI cable (or DisplayPort cable); or MHL devices by
YPbPr using MHL cable.
Or if the DVD (or MHL devices) color output setting is not RGB.
GammaAllows you to set...

42  |  Operating the Monitor
Preset ModesWhen you select Preset Modes, you can choose Standard, Multimedia,
Movie, Game, Paper, Color Temp.,or Custom Color from the list.
•Standard: Loads the monitor's default color settings. This is the
default preset mode.
•Multimedia: Loads color settings ideal for multimedia applications.
•Movie: Loads color settings ideal for movies.
•Game: Loads color settings ideal for most gaming applications.
•Paper: Loads brightness and sharpness settings ideal for...

Operating the Monitor  |  43
Display Use the Display to adjust image.
Aspect RatioAdjusts the image ratio to Wide 16:10, 4:3, or 5:4.
SharpnessThis feature can make the image look sharper or softer. Use  or
 to adjust the sharpness from '0' to '100'.
Response
Ti m eAllows you to set the Response Time to Normal or Fast.
Dynamic
ContrastAllows you to increase the level of contrast to provide sharper and more
detailed image quality.
Press the  button to select the Dynamic Contrast...

44  |  Operating the Monitor
Energy
Power
Button LEDAllows you to set the power LED indicator On or Off to save energy.
USBAllows you to enable or disable USB function during monitor standby
mode.
NOTE: USB ON/OFF under standby mode is only available when the
USB upstream cable is unplugged. This option will be greyed out when
the USB upstream cable plugs in.
Reset Energy
SettingsSelect this option to restore default Energy settings.

Operating the Monitor  |  45
MenuSelect this option to adjust the settings of the OSD, such as, the
languages of the OSD, the amount of time the menu remains on screen,
and so on.
LanguageLanguage options set the OSD display to one of the eight languages
(English, Spanish, French, German, Brazilian Portuguese, Russian,
Simplified Chinese or Japanese).
RotationRotates the OSD by 90 degrees counter-clockwise. You can adjust the
menu according to your
Display Rotation.
TransparencySelect this option...

46  |  Operating the Monitor
PersonalizeUsers can choose a feature from Preset Modes, Brightness/Contrast,
Input Source, Aspect Ratio, or Rotation and set it as a shortcut key.
Other
Button
SoundThe monitor beeps every time a new option is selected in the menu.
This feature enables or disables the sound.

Operating the Monitor  |  47
 NOTE: This monitor has a built-in feature to automatically calibrate the brightness
to compensate for LED aging.
DDC/CIDDC/CI (Display Data Channel/Command Interface) allows your
monitor parameters (brightness, color balance, and etc.) to be
adjustable via the software on your computer.
Yo u  c a n  d i s a b l e  t h i s  feature by selecting Disable.
Enable this feature for best user experience and optimum performance
of your monitor.
LCD
ConditioningHelps reduce...

48  |  Operating the Monitor OSD Warning Messages
When the Dynamic Contrast feature is enabled (in these preset modes: Game or Movie),
the manual brightness adjustment is disabled.
When the monitor does not support a particular resolution mode, you will see the
following message:
This means that the monitor cannot synchronize with the signal that it is receiving from
the computer. See
Monitor Specifications for the Horizontal and Vertical frequency
ranges addressable by this monitor. Recommended...

Operating the Monitor  |  49
Activate the computer and wake up the monitor to gain access to the OSD.
If you press any button other than the power button, one of the following messages will
appear depending on the selected input:
HDMI (MHL)/Mini DisplayPort/DP input
HDMI (MHL) input

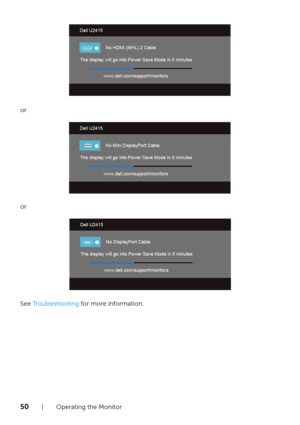

If either HDMI (MHL), Mini DisplayPort, or DP input is selected and the corresponding
cable is not connected, a floating dialog box as shown below appears.
or

50  |  Operating the Monitor
or
or
See Troubleshooting for more information.
