About Your Monitor

   Front View
   Back View
   Bottom View
   Side View
   Monitor Specifications
   Cleaning Your Monitor

Front View


Back View  1. Video input select
2. OSD menu / select button
3.  Brightness & Contrast / Down ( - ) button
4. Auto - Adjust / Up (+) button
5. Power button (with power light indicator)
6. Webcam
7. MIC



Bottom View

NOTE:   You can use this connector only after you connect the USB cable to the computer and the USB upstream connector on the monitor.
Side View  1 VESA mounting holes (100mm) (Behind
attached base plate) Use to mount the monitor.
2 Barcode serial number label Refer to this label if you need to contact Dell for technical support.
3 Security lock slot Use a security lock with the slot to help secure your monitor.
4 Dell Soundbar mounting brackets Attach the optional Dell...

Monitor Specifications
Power Management Modes
If you have VESA's DPM™ compliance display card or software installed in your PC, the monitor automatically reduces its power consumption when not in use.
This is referred to as Power Save Mode. The monitor automatically resumes functioning when the computer detects input from the keyboard, mouse, or other
input devices. The following table shows the power consumption and signaling of this automatic power saving feature:

Activate the computer...


The following table shows pin assignments in the D - Sub connector:
24 - pin Digital - only DVI Connector

NOTE:   Pin 1 is at the top right.
The following table shows pin assignments in the DVI connector:
Universal Serial Bus (USB) Interface
USB ports:    Pin Number Monitor Side of the 15 - pin Side Signal Cable
1 Video - Red
2 Video - Green
3 Video - Blue
4 GND
5 Self - Test
6 GND - R
7 GND - G
8 GND - B
9 DDC +5V
10 GND
11 GND
12 DDC data
13 H - sync
14 V - sync
15 DDC clock
Pin Signal...

l 1 upstream  -  rear
l 4 downstream  -  2 on rear; 2 on left side

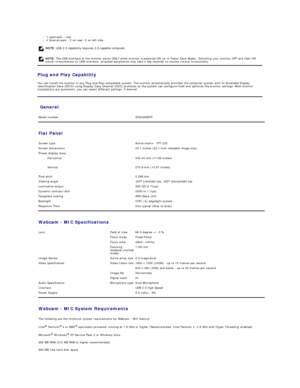

Plug and Play Capability
You can install the monitor in any Plug and Play - compatible system. The monitor automatically provides the computer system with its Extended Display
Identification Data (EDID) using Display Data Channel (DDC) protocols so the system can configure itself and optimize the monitor settings. Most monitor
installations are automatic; you can select different settings, if desired.  NOTE:  USB 2.0 capability...

Available USB 1.1 port or a USB 1.1 hub with external power supply (USB 2.0 required for maximum frame rate and resolution)
CD - ROM/DVD - ROM drive for software installation
Monitor Resolution
Horizontal scan range 30 kHz to 83 kHz (automatic)
Vertical scan range 56 Hz to 76 Hz (automaticyf
Optimal preset resolution 1680 x 1050 at 60 Hz
Highest preset resolution 1680 x 1050 at 60 Hz
Video Supported Modes
Video display capabilities (DVI HD playback)  480i/480p/576i/576p/720p/1080i/1080p (Supports...


Cleaning Your Monitor
l To clean your antistatic screen, slightly dampen a soft, clean cloth with water. If possible, use a special screen - cleaning tissue or solution suitable for
the antistatic coating. Do not use benzene, thinner, ammonia, abrasive cleaners, or compressed air.
l Use a slightly - dampened, warm cloth to clean the plastics. Avoid using detergent of any kind as some detergents leave a milky film on the plastics.
l If you notice a white powder when you unpack...

Back to Contents Page

Appendix

   Safety Instructions
   FCC Notice (U.S. Only) and Other Regulatory Information
   Contacting Dell

CAUTION: Safety Instructions
For safety instructions, see the  Product Information Guide .
FCC Notice (U.S. Only) and Other Regulatory Information
For FCC Notice and other regulatory information, see the regulatory compliance website located at www.dell.com/regulatory_compliance.
Contacting Dell
For customers in the United States, call 800 -...

Back to Contents Page
Setting Up Your Monitor


1. Go to  http://support.dell.com ,  enter your service tag, and download the latest driver for your graphics card.
2. After installing the drivers for your Graphics Adapter, attempt to set the resolution to  1680x1050  again.
Back to Contents Page  NOTE:  If you are unable to set the resolution to 1680x1050, please contact Dell™ to inquire about a Graphics Adapter that supports these resolutions.
