Cisco Asdm 7 User Guide


4-15
Cisco ASA Series Firewall ASDM Configuration Guide

Chapter 4      Configuring Network Object NAT (ASA 8.3 and Later)
  Configuring Network Object NAT
Step 9Click OK, and then Apply.
Because static rules are bidirectional (allowing initiation to and from the real host), the NAT Rules table
show two rows for each static rule, one for each direction.
Configuring Identity NAT
This section describes how to configure an identity NAT rule using network object NAT. For more
information, see the...


4-16
Cisco ASA Series Firewall ASDM Configuration Guide

Chapter 4      Configuring Network Object NAT (ASA 8.3 and Later)
  Configuring Network Object NAT
c.IP Address—An IPv4 or IPv6 address. If you select Range as the object type, the IP Address field
changes to allow you to enter a Start Address and an End address.
d.Netmask/Prefix Length—Enter the subnet mask or prefix length.
e.Description—(Optional) The description of the network object (up to 200 characters in length).
Step 3If the NAT...


4-17
Cisco ASA Series Firewall ASDM Configuration Guide

Chapter 4      Configuring Network Object NAT (ASA 8.3 and Later)
  Configuring Network Object NAT
Step 6In the Translated Addr. field, do one of the following:
Type the same IP address that you used for the real address.
Click the browse button, and choose a network object with a matching IP address definition from
the Browse Translated Addr dialog box.
Click the browse button, and create a new network object with a matching IP address...


4-18
Cisco ASA Series Firewall ASDM Configuration Guide

Chapter 4      Configuring Network Object NAT (ASA 8.3 and Later)
  Configuring Network Object NAT
Configuring Per-Session PAT Rules
By default, all TCP PAT traffic and all UDP DNS traffic uses per-session PAT. To use multi-session PAT
for traffic, you can configure per-session PAT rules: a permit rule uses per-session PAT, and a deny rule
uses multi-session PAT. For more information about per-session vs. multi-session PAT, see the...


4-19
Cisco ASA Series Firewall ASDM Configuration Guide

Chapter 4      Configuring Network Object NAT (ASA 8.3 and Later)
  Monitoring Network Object NAT
A permit rule uses per-session PAT; a deny rule uses multi-session PAT.
Step 3Specify the Source Address either by typing an address or clicking the ... button to choose an object.
Step 4Specify the Source Service, UDP or TCP. You can optionally specify a source port, although normally
you only specify the destination port. Either type in UDP/port...

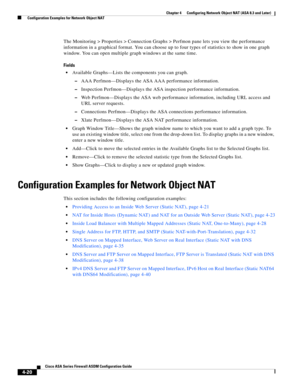

4-20
Cisco ASA Series Firewall ASDM Configuration Guide

Chapter 4      Configuring Network Object NAT (ASA 8.3 and Later)
  Configuration Examples for Network Object NAT
The Monitoring > Properties > Connection Graphs > Perfmon pane lets you view the performance
information in a graphical format. You can choose up to four types of statistics to show in one graph
window. You can open multiple graph windows at the same time.
Fields
Available Graphs—Lists the components you can graph.
–AAA...


4-21
Cisco ASA Series Firewall ASDM Configuration Guide

Chapter 4      Configuring Network Object NAT (ASA 8.3 and Later)
  Configuration Examples for Network Object NAT
Providing Access to an Inside Web Server (Static NAT)
The following example performs static NAT for an inside web server. The real address is on a private
network, so a public address is required. Static NAT is necessary so hosts can initiate traffic to the web
server at a fixed address. (See Figure 4-1).
Figure 4-1 Static NAT for...


4-22
Cisco ASA Series Firewall ASDM Configuration Guide

Chapter 4      Configuring Network Object NAT (ASA 8.3 and Later)
  Configuration Examples for Network Object NAT
Step 3Configure static NAT for the object:
Step 4Configure the real and mapped interfaces by clicking Advanced:


4-23
Cisco ASA Series Firewall ASDM Configuration Guide

Chapter 4      Configuring Network Object NAT (ASA 8.3 and Later)
  Configuration Examples for Network Object NAT
Step 5Click OK to return to the Edit Network Object dialog box, click OK again, and then click Apply.
NAT for Inside Hosts (Dynamic NAT) and NAT for an Outside Web Server
(Static NAT)
The following example configures dynamic NAT for inside users on a private network when they access
the outside. Also, when inside users connect to...


4-24
Cisco ASA Series Firewall ASDM Configuration Guide

Chapter 4      Configuring Network Object NAT (ASA 8.3 and Later)
  Configuration Examples for Network Object NAT
Figure 4-2 Dynamic NAT for Inside, Static NAT for Outside Web Server
Step 1Create a network object for the inside network:
Step 2Define the addresses for the inside network:
Outside
Inside10.1.2.1 209.165.201.1
Security
Appliance
myInsNet
10.1.2.0/24 Web Server
209.165.201.12
209.165.201.1210.1.2.20
248773
Undo Translation...
