Cisco Acs 5x User Guide

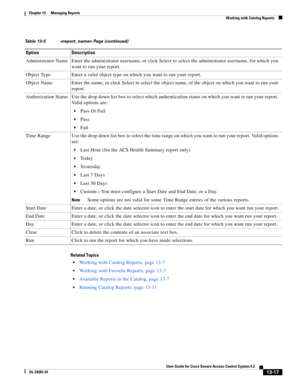

13-17
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Chapter 13      Managing Reports
  Working with Catalog Reports
Related Topics
Working with Catalog Reports, page 13-7
Working with Favorite Reports, page 13-3
Available Reports in the Catalog, page 13-7
Running Catalog Reports, page 13-11 Administrator Name Enter the administrator username, or click Select to select the administrator username, for which you
want to run your report.
Object Type Enter a valid object type on which you...

13-18
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Chapter 13      Managing Reports
  Working with Catalog Reports
Enabling RADIUS CoA Options on a Device
To view all the RADIUS Active Session reports you have to enable RADIUS CoA options on the device.
To configure the RADIUS CoA options:
Step 1Configure MAB, 802.1X and Web Authentication on the NAD against ACS RADIUS Server.
Step 2Configure CoA on the NAD as follows, which is connected to the supplicant.
aa server radius...

13-19
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Chapter 13      Managing Reports
  Working with Catalog Reports
Figure 13-2 RADIUS Active Session Report
Step 2
Click the CoA link from the RADIUS session that you want to reauthenticate or terminate.
The Change of Authorization Request page appears.
Step 3Select a CoA option from the CoA option drop-down list box shown in Figure 13-3.
Valid options are:
Disconnect:None—Do not terminate the session.
Disconnect:Port Bounce—Terminate...

13-20
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Chapter 13      Managing Reports
  Working with Catalog Reports
Shared secret mismatch
Step 5See the Troubleshooting RADIUS Authentications, page 14-6 to troubleshoot a failed change of
authorization attempt.
A failed dynamic CoA will be listed under failed RADIUS authentications.
Customizing Reports
To customize a system report:
Step 1Select Monitoring & Reports > Reports > Catalog > report_type > report_name, where report_type...

13-21
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Chapter 13      Managing Reports
  Viewing Reports
Step 3Click Ye s to confirm that you want to reset the System Report files to the factory default.
The page is refreshed, and the reports in Catalog > report_type are reset to the factory default.
Viewing Reports
This section describes how to view the reports and perform various tasks in Standard or Interactive
Viewer. In Standard Viewer or Interactive Viewer, you can navigate to...

13-22
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Chapter 13      Managing Reports
  Viewing Reports
Figure 13-4 Context Menu for Column Data in Interactive Viewer
Figure 13-5 shows the context menu you use to modify labels in Interactive Viewer. To display this
menu, select and right-click a label. Use this menu to edit the label text or change the text alignment or
font properties of the label.
Figure 13-5 Context Menu for Labels in Interactive Viewer
If the report contains a...

13-23
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Chapter 13      Managing Reports
  Viewing Reports
Navigating Reports
When you open a report in the viewer, you see the first page of data. To view or work with data, you use
tools that help you navigate the report.
In the viewer, you can page through a report by using the paging tool shown in Figure 13-7. Using this
tool, you can click an arrow to view the first or last page in the report, or move forward or back through
the...

13-24
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Chapter 13      Managing Reports
  Viewing Reports
Figure 13-10 Table of Contents Expanded Entry
To navigate to a specific page, click the related link.
Exporting Report Data
The viewer supports the ability to export report data to an Excel spreadsheet as a comma-separated
values (.csv) file, pipe-separated values (.psv) file, or a tab-separated values (.tsv) file. You can select an
option to export the column’s data type.
The...

13-25
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Chapter 13      Managing Reports
  Viewing Reports
In Excel, you can resize columns and format the data as you would do for any other spreadsheet.
Step 1In the viewer, select Export Data.
The Export Data dialog box appears, as shown in Figure 13-12.
Figure 13-12 The Export Data Dialog Box
Available Result Sets lists the tables in the report.
Available Columns lists the columns you can export from the specified table. You can export...

13-26
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Chapter 13      Managing Reports
  Viewing Reports
Printing Reports
You can print a report that appears in the viewer in HTML or PDF format. Because you can modify the
report in Interactive Viewer, Interactive Viewer supports printing either the original report or the report
as you modify it.
Step 1In the viewer, select Print Report.
The Print dialog box appears.
Step 2In Format field, select HTML or PDF.
Step 3In the Page Range...
