Cisco Acs 5x User Guide

9-11
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Chapter 9      Managing Policy Elements
  Managing Policy Conditions

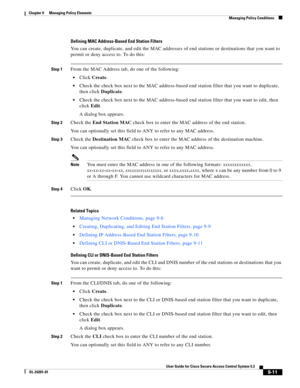

Defining MAC Address-Based End Station Filters
You can create, duplicate, and edit the MAC addresses of end stations or destinations that you want to
permit or deny access to. To do this:
Step 1From the MAC Address tab, do one of the following:
Click Create.
Check the check box next to the MAC address-based end station filter that you want to duplicate,
then click...

9-12
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Chapter 9      Managing Policy Elements
  Managing Policy Conditions
Step 3Check the DNIS check box to enter the DNIS number of the destination machine.
You can optionally set this field to ANY to refer to any DNIS number.
NoteYou can use ? and * wildcard characters to refer to any single character or a series of one or more
successive characters respectively.
Step 4Click OK.
Related Topics
Managing Network Conditions, page 9-6...

9-13
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Chapter 9      Managing Policy Elements
  Managing Policy Conditions
Step 5Click Submit to save the changes.
Related Topics
Managing Network Conditions, page 9-6
Importing Network Conditions, page 9-8
Creating, Duplicating, and Editing End Station Filters, page 9-9
Creating, Duplicating, and Editing Device Port Filters, page 9-14
Defining IP Address-Based Device Filters
You can create, duplicate, and edit the IP addresses of network...

9-14
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Chapter 9      Managing Policy Elements
  Managing Policy Conditions
Check the check box next to the name-based device filter that you want to edit, then click Edit.
A dialog box appears.
Step 2Click Select to choose the network device that you want to filter.
Step 3Click OK.
Related Topics
Managing Network Conditions, page 9-6
Creating, Duplicating, and Editing Device Filters, page 9-12
Defining IP Address-Based Device Filters, page...

9-15
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Chapter 9      Managing Policy Elements
  Managing Policy Conditions
Check the check box next to the device port filter that you want to edit, then click Edit.
Click Export to save a list of device port filters in a .csv file. For more information, see Exporting
Network Conditions, page 9-9.
Click Replace from File to perform a bulk import of device port filters from a .csv import file. For
more information, see Importing Network...

9-16
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Chapter 9      Managing Policy Elements
  Managing Policy Conditions
Step 3Check the Port check box and enter the port number. This field is of type string and can contain numbers
or characters. You can use the following wildcard characters:
?—match a single character
*—match a set of characters
For example, the string “p*1*” would match any word that starts with the letter “p” and contains the
number 1, such as port1, port15, and...

9-17
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Chapter 9      Managing Policy Elements
  Managing Authorizations and Permissions

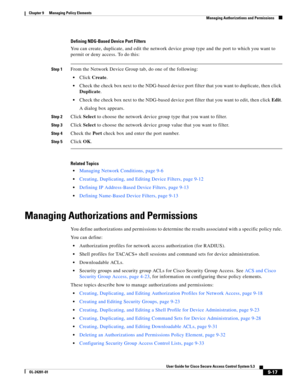

Defining NDG-Based Device Port Filters
You can create, duplicate, and edit the network device group type and the port to which you want to
permit or deny access. To do this:
Step 1From the Network Device Group tab, do one of the following:
Click Create.
Check the check box next to the NDG-based device port filter that you want to duplicate, then click...

9-18
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Chapter 9      Managing Policy Elements
  Managing Authorizations and Permissions
Creating, Duplicating, and Editing Authorization Profiles for Network Access
You create authorization profiles to define how different types of users are authorized to access the
network. For example, you can define that a user attempting to access the network over a VPN
connection is treated more strictly than a user attempting to access the network...

9-19
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Chapter 9      Managing Policy Elements
  Managing Authorizations and Permissions
Specifying Authorization Profiles
Use this tab to configure the name and description for a network access authorization profile.
Step 1Select Policy Elements > Authorization and Permissions > Network Access > Authorization
Profiles, then click:
Create to create a new network access authorization definition.
Duplicate to duplicate a network access...

9-20
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Chapter 9      Managing Policy Elements
  Managing Authorizations and Permissions
Table 9-5 Authorization Profile: Common Tasks Page
Option Description
ACLS
Downloadable ACL Name Includes a defined downloadable ACL. See Creating, Duplicating, and Editing
Downloadable ACLs, page 9-31 for information about defining a downloadable ACL.
Filter-ID ACL Includes an ACL Filter ID.
Proxy ACL Includes a proxy ACL.
Voice VLAN
Permission to Join...
