Christie Projector M Series Specifications

M Series
Audience events
Auditoriums
Boardrooms
Broadcast studios
Conference rooms Home cinema
Houses of worship Post-productionTraining rooms And more...
Redefine your expectations.

We didn’t just raise the bar.
We redefined the entire game.
the ChrIStIe M SerIeS JUSt GOt WIDer.
We’ve designed the M Series, a flexible, efficient line of 3-chip \
DLP® projectors, with your needs
in mind. We’ve thought of it all, put it into a sleek, compact chassis and provided you with
a full set of options.
The most compact in its class, this dual mercury lamp platform provides the high-performance
and feature-rich standards you’ve come to expect from all Christie products. You’ll see that...

7
9
6
4
3
25
8
1
[ 1  ]
  Dual-lamp system1, 2

High-efficiency, dual-lamp system:
•  200W or 350W (two lamp system)
•  120V (operation) for full brightness
•   At maximum brightness 10,500 ANSI lumens
(11,500 center lumens) the unit only draws 1320W
•    Stand by power consumption
(phantom power draw) is less than 20W
•
Lamps can be hot swapped while projector
is powered on and in use
[  2  ]
  Image quality
 3-chip DLP® technology, high-quality optics and world-class
10-bit image...

 4
[ 5  ]
  Dust sealed engine
M Series projectors can
operate filter-free because
of dust-sealed engines and
optics. Since dust and dirt
cannot affect the system
and filters are not required,
image quality is maintained and maintenance costs are lower.
Removable side panels enable the addition of optional coarse
dust and fog juice filters for projectors that are exposed to
harsh environments.
[  6  ]
  Motorized yellow notch filter2
The motorized yellow notch
filter optically expands the...

[ 8 ]
  Multi-window/screen processing
External processors are not required for simple, small tiled and
blended arrays, therefore lowering your costs for installation.
Each M Series projector has the ability to send signals to
multiple projectors (up to a 3 x 3 array)* without any additional
hardware or software. The projectors in the tiled array can then
show only the portion of the signal that they need to project.
[ 8  ]
  Embedded edge blending and color matching
Advanced blending...

[ 8 ]  Input cards

In total, there are four input
card slots available. Each
projector is equipped with
a standard set of input cards.
Dual
SD/hD – SDI input card  The Dual SD/HD-SDI input
card accepts both standard-
definition (SD) and high-
definition (HD) serial-digital-
interface (SDI) signals, and
enables the user to connect
two of either types of signal. Both single-link HD and dual-link
HD signals are accepted. This card also has two SD/HD-SDI
outputs to enable “loop-through” for its...

Quiet operation
When your presentation depends on the full attention
of your audience you don’t want them focused on the noise
from your projector. The filter-free design with auto-sensing
fan and temperature sensors automatically adjust for the
quietest operation possible.
Roadster models
The M Series Roadster models
have been designed with
stagers in mind. The Christie
Roadster S+10K-M, Christie
Roadster HD10K-M and
Christie Roadster WU12K-M
ship equipped with more
input
cards than the...

 teChnICAl SPeCIFICAtIOnS 8
All values are within a 5% error.
lens name
0.73:1 SX+/ 1.2:1 SX+/  1.25 -1.6:1 SX+/1.16 -1.49:1 h D1.5 -2.0:1 SX+/ 1.4 -1.8:1 hD2.8 - 4.5:1 SX+/ 2.6 - 4.1:1 h D7.5 -11.2:1 SX+/6.9-10.4:1 h D
0.67:1 hD1.1:1 hD2.0 -2.8:1 SX+/ 1.8 -2.6:1 h D4.5 -7.5:1 SX+/4.1- 6.9:1 hD
lens throw ratio
SX+ (4:3)
Screen size 0.731.21.251.61.522.84.57.511.2
Screen width – ft (m) Screen height – ft (m)
throw distance – ft (m)4.8 (1.5) 3.6 (1.1)3.5 (1.1)5.8 (1.8)6.0 (1.8)7.7 (2.3)7.2 (2.2)9.6...

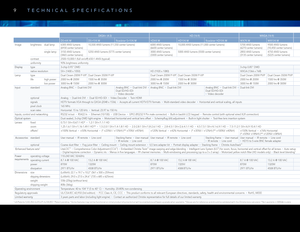

9 teChnICAl SPeCIFICAtIOnS
SXGA+ (4:3)hD (16:9)W XGA (16:9) WUXGA (16:10)
DS+6K-M D S +1 0 K - M
roadster S+10K-Mh D6K-MhD10K- Mroads ter  hD10K- MW X7K- M W X10 K- M WU7K- MW U12K- Mroadster WU12K-M
Image brightness
dual lamp
6300 ANSI lumens
(6930 center lumens) 10,500 ANSI lumens (11,550 center lumens)
6000 ANSI lumens
(6600 center lumens)  10,000 ANSI lumens (11,000 center lumens)
5700 ANSI lumens
(6270 center lumens)
9500 ANSI lumens
(10,450 center lumens)
6300 ANSI lumens
(6930...
