AEG Lavamat 86800 Information Manual

21
Setup
The special functions that can be set under Setup remain permanently
stored independent of each washing cycle – even after the appliance
has been switched off or the mains plug has been removed from the
socket.
Memory 1, 2, 3
Programme combinations can be stored at programme knob positions
MEMORY 1, 2, 3 and can then be selected using the programme knob.
To do this the desired programme combination is first put together and
then stored.
Setting the Memory
 Example: Programme posi-
tion...

22
7.Press the OK key.
The programme combination is now stored to programme knob posi-
tion MEMORY 1 and in the future can be selected directly using the
programme knob.
3The Memory can be overwritten at any time with a new programme
combination (see “Changing the Memory”), but cannot be deleted.
Changing the Memory
1.Put together the new programme combination as required (for an ex-
ample, see “Setting the Memory”, steps 1 to 4).
2.Press the OPTIONS key repeatedly, until the SETUP symbol  flashes....

23
Extra Rinse
1.Turn the programme knob to any programme and press the OPTIONS
key repeatedly until the SETUP symbol  flashes.
2.Press the OK key.
 3.Press the OPTIONS key re-
peatedly until EXTRA RINSE
is shown in the display.
4.Press the OK key. The EXTRA
RINSE symbol  appears.
The icon changes to the next
special function.
5.Press the OPTIONS key re-
peatedly, until the exit icon appears.
Language
1.Turn the programme knob to any programme and press the OPTIONS
key
repeatedly until the SETUP...

24
Clock
1.Turn the programme knob to any programme and press the OPTIONS
key repeatedly until the SETUP symbol  flashes.
2.Press the OK key.
3.Press the OPTIONS key repeatedly until CLOCK is shown in the display.
4.Press the OK key.
 5.Using the OPTIONS key set
the desired time. With each
press of the key, the display
moves on by one minute. If
the key is kept pressed, the
display changes in 10 minute
steps.
6.Press the OK key. The icon
changes to the next special function.
7.Press the OPTIONS...

25
Child safety device
If the child safety device has been activated, the door can no longer be
shut.
Activating the child safety device:
Use a coin to turn the knob (on the
inside of the door) in a clockwise di-
rection as far as it will go.
1Warning! The knob must not be de-
pressed after being set, otherwise
the child safety device is not acti-
vated. The knob must stand proud
as shown in the illustration.
Deactivating the child safety device:
Turn the knob in an anti-clockwise direction as far...

26
Cleaning and care
Important: Do not use furniture cleaning products or aggressive clean-
ing agents to clean the appliance.
Wipe over the control panel and housing with a damp cloth.
Detergent drawer
The detergent drawer should be cleaned regularly.
1.Remove the detergent drawer by pulling firmly.
2.Remove the softener insert from the
middle compartment.
3.Clean all parts with water.
4.Place the softener insert in as far as
it will go, so that it is firmly in posi-
tion.
5.Clean the entire drawer...

27

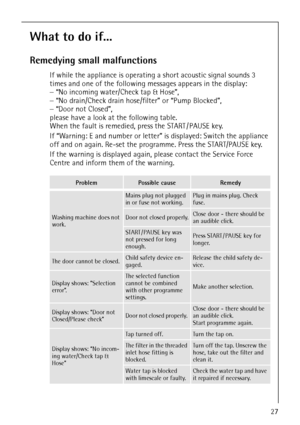

What to do if...
Remedying small malfunctions
If while the appliance is operating a short acoustic signal sounds 3
times and one of the following messages appears in the display:
–“No incoming water/Check tap & Hose”,
–“No drain/Check drain hose/filter” or “Pump Blocked”,
–“Door not Closed”,
please have a look at the following table.
When the fault is remedied, press the START / PAUSE key.
If “Warning: E and number or letter” is displayed: Switch the appliance
off and on again. Re-set the...

28
The washing machine vi-
brates when operating or is
not stable.
Transit bar has not been
removed.Removing the transit bar.
The screw feet not cor-
rectly adjusted.Adjust feet according to the
Installation and Connection
instructions.
There is very little wash-
ing in the drum (e. g.,
just one bathrobe).This does not affect how the
machine operates.
Water is running out from
under the washing
machine.
Screw connection on the
inlet hose is leaking.Screw the inlet hose in firmly.
Drain hose is...

29
If the wash result is not satisfactory
The washing is grey and there are limescale deposits in the drum
Too little detergent was used.
An incorrect detergent was used.
Individual stains were not pre-treated.
The programme or temperature was not set properly.
There are grey stains on the washing
Items that were soiled with ointments, fats or oils were washed using
too little detergent.
The wash temperature used was too low.
A common cause is that conditioner – in particular the type in con-...

30
Carrying out an emergency drain
1Warning! Prior to carrying out an emergency drain, switch off the
washing machine and remove the power plug from the power point.
Warning! The water that comes out of the emergency drain hose may
be hot. There is a risk of scalding. Let the water cool before performing
an emergency drain!
1.Open the plinth flap and remove it.
2.Remove the emergency drain hose.
3.Place a shallow container under-
neath it. Then loosen the drain plug
by turning it in an anti-clockwise...
